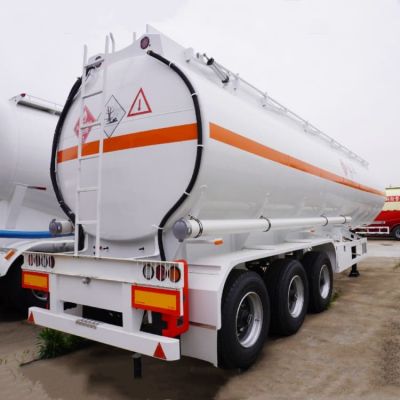

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailer

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailer

TITAN is a fuel tank trailer manufacturer specializing in the production and export of semi tankers. It was established in 2004. At present, oil tanker products are sold all over the world, especially in Africa, Southeast Asia and South America. This material is carbon steel, ensure the safety of the tanker and increase the service life. And 45000 liters fuel tanker truck trailer is one of the most popular model in TITAN.

SKU:
GTIN:
MPN:
Brand:

Fuel Tanker Trailer Description:

TITAN 45000 liters fuel tanker trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safe, also beneficial.

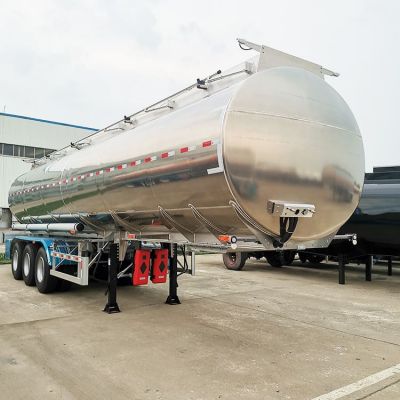

TITAN offers carbon steel, stainless steel, or aluminum material tanker trailers. The volume of the fuel tanker trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquids.

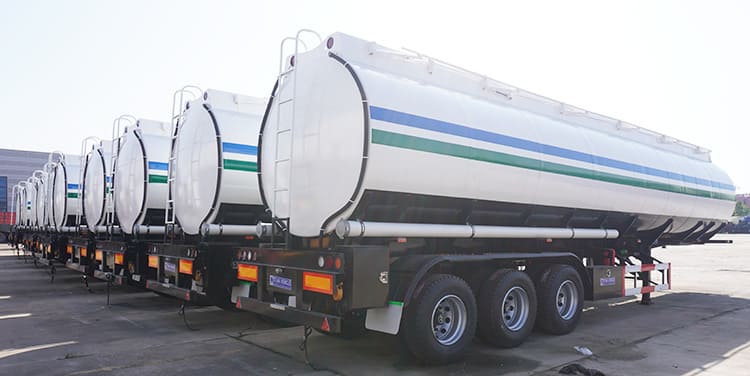

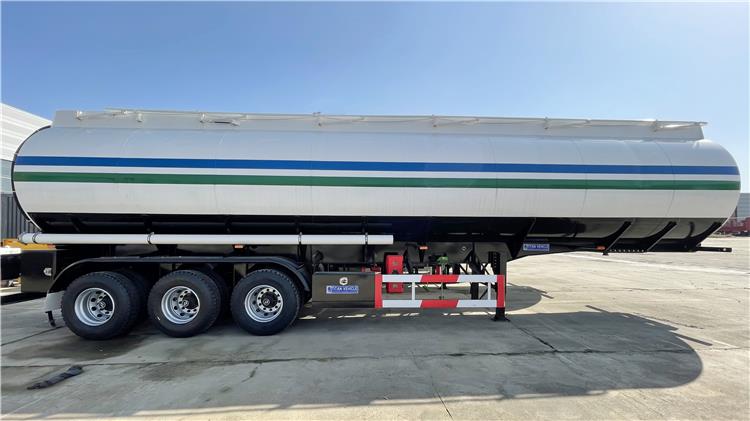

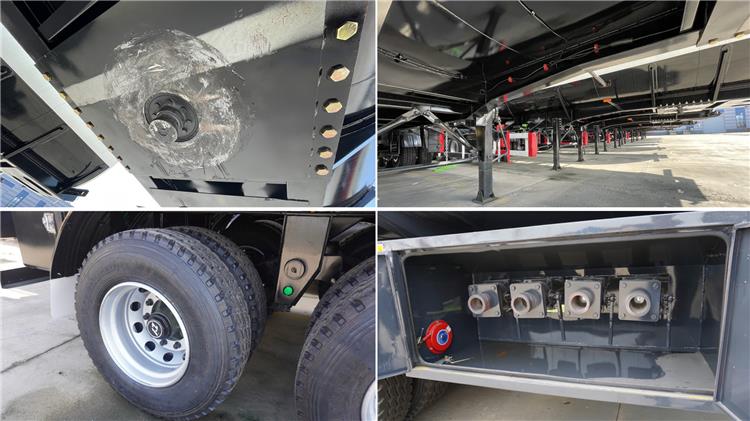

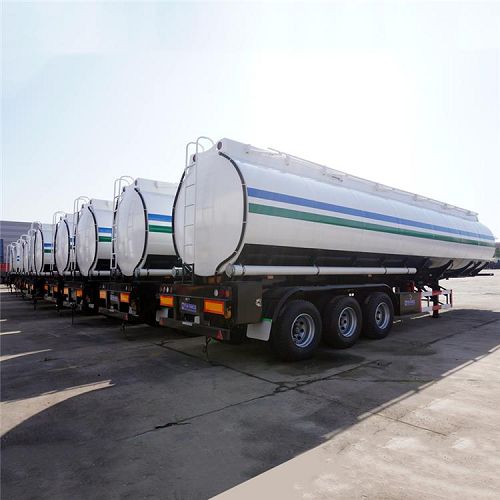

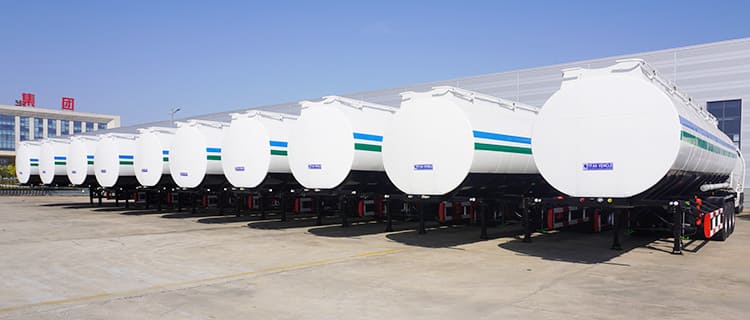

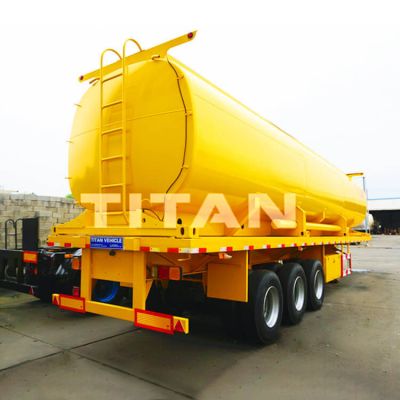

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe

Tri Axle 45000 Liters Fuel Tanker Truck Semi Trailers for Sale In Zimbabwe



3 Axle Fuel Tanker Semi Trailers Specification:

Shape: Round

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 38000 Liters

Tank Body Material: 5mm or 6mm/ carbon steel

End plate: 5mm or 6mm/ carbon steel

Manhole Cover: carbon steel

Bottom Valve: API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12 units, 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers



Tri Axle 45000 Liters Fuel Tanker Trailer Advantage:

1.TITAN use high strength steel to make fuel tanker trailer, which makes the tank body very strength.

2.Our fuel tanker trailer use the most advanced single-sided welding and double-sided forming welding technology, which make the welding seam is stronger and smoother and there will never be a phenomenon of open welding.

3.TITAN's tank body adopts longitudinal welding technology, which reduces the number of welding seams of the tank body and improves the overall firmness of the tank body by more than 20%.

4.3 axle fuel tank semi trailers for sale is equipped with anti-wave board, which can greatly reduce the impact of the liquid inside on the trailer during transportation and greatly improve the safety of the trailer.

5.TITAN's fuel tank trailer uses polyurethane paint that costs twice as much as ordinary paint, which is not only beautiful in color, but also has strong adhesion and will not fall off even after 5 years of use.

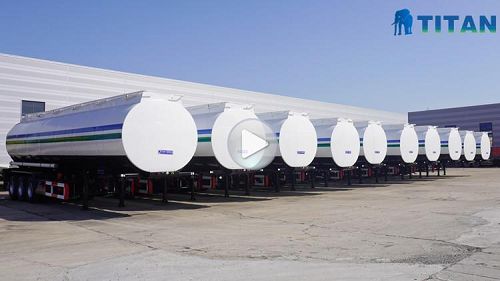

45000 Liters Fuel Tanker Trailer Video

45000 Liters Fuel Tanker Trailer with 4 Compartment Video



Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

fuel tanker trailer



Please click " TITAN Fuel Tanker Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
