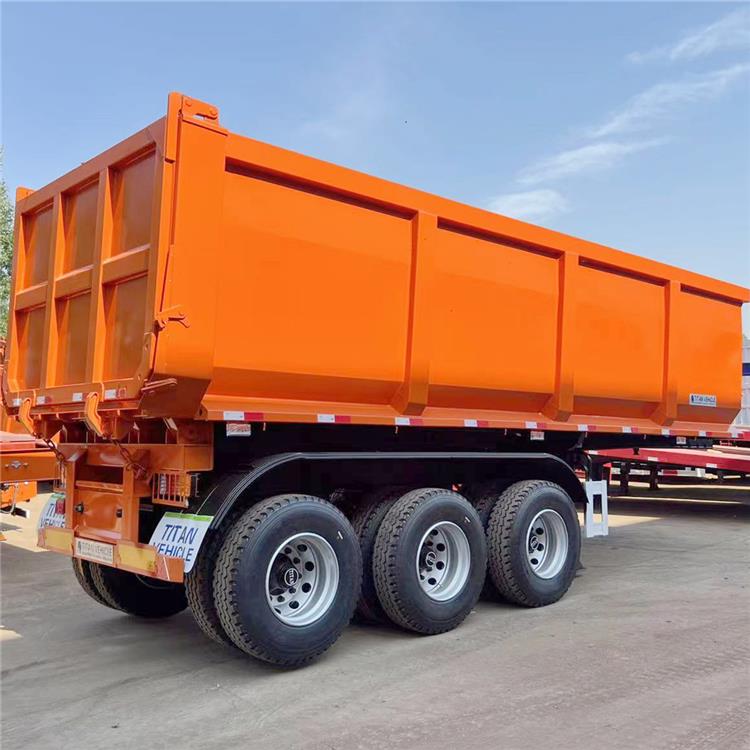

3 Axle 60 Ton Hydraulic Tipper Trailer

Name: 3 Axle 60 Ton Hydraulic Tipper Trailer
Rating: 0.00 (0 reviews)

3 Axle 60 ton tipper trailers will help you to carry and offload bulk goods in a very easy and efficient manner. With 3 axle 60 ton tipper trailers, they are applicable in the construction, agriculture, and recycling industries among many other areas.

SKU:

GTIN:

MPN:

Brand:

Tipper Trailers Description:

3 Axle 60 ton tipper trailers is a vehicles used to transport construction materials such as sand, clay, and plate materials. The dumping rate is relatively high.

The difference from other buckets is that there is a hydraulic press lifting organization, which consists of a retarder, a car fuel tank, Valves, pipes, hydraulic cylinders and other hydraulic components.

The 3 Axle 60 ton tipper trailers carriage adopts rear-dump and side-dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The 3 Axle 60 ton tipper trailers carriage is inclined at a certain angle so that the cargo in the carriage is unloaded.

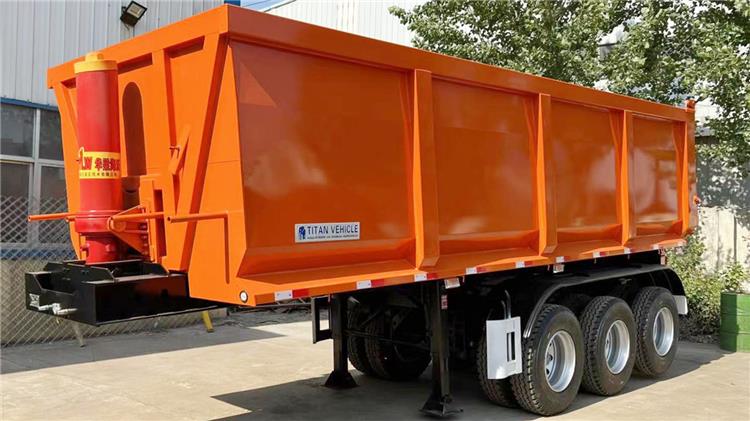

Hydraulic 3 Axle 60 Ton Tipper Trailers Price for Sale Near Me In Nigeria Lagos

Tipper Trailer Specification:

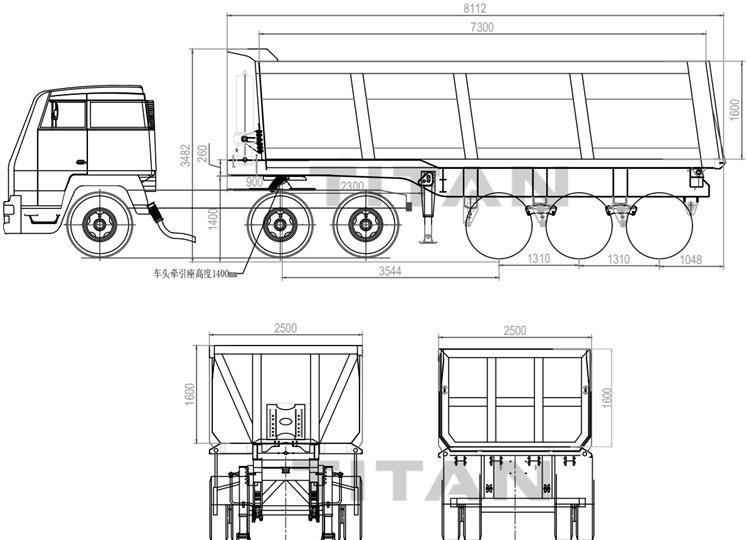

Dimension: 8112mmx2500mm x3482mm ( inside dimension )

Total volume(ton): 60Ton

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 3 Axle, 13T, FUWA

Rim: 8.0-20 or 9.00-20

Tire: 12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Bottom Platform: 4-6mm thick checkered plate

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

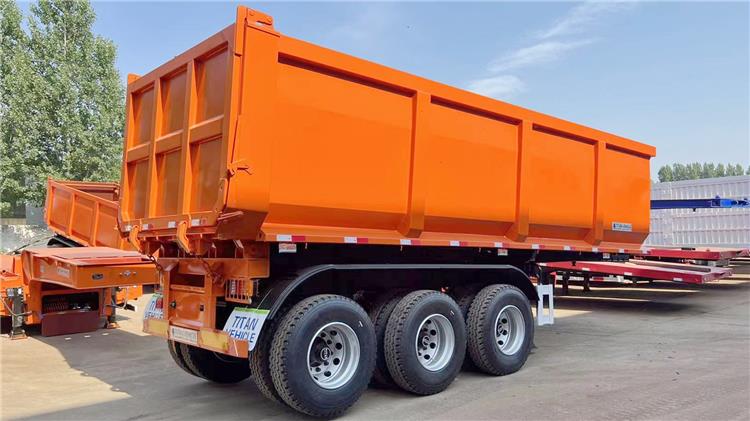

Hydraulic 3 Axle 60 Ton Tipper Trailers Price for Sale Near Me In Nigeria Lagos

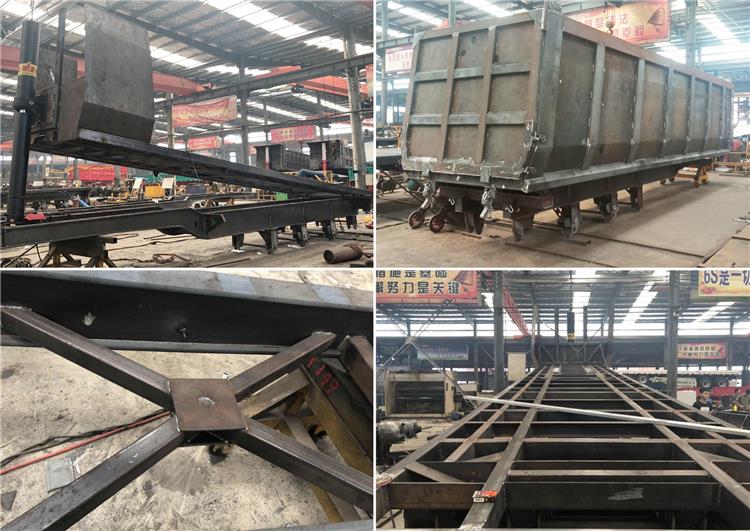

Tipper Trailers Structure:

Girder: Heavy-duty models are double-slab girders - with stronger bearing capacity, the girder is not easy to break

Sub-beam: set under the bottom plate, 4 sub-beams, anti-distortion and stronger. The intersection of sub-beams is reinforced with triangular plates to prevent deformation and cracking, which can make the bearing capacity of the bottom plate better and not easily deformed

Cross balance beam: There is a balance beam at the front and rear of the frame. Prevent the 3 axle 60 ton tipper trailers from rolling over and increase the stability of the body

Flip brackets: 4 heavy-duty flip brackets, more stable and firm, the brackets are independent.The rear door adopts a double buckle design, which is more secure

Axle and Suspension system: The 3 axle 60 ton tipper trailers axle belongs to the famous brands of BPW and Fuwa. With quality assurance, its service life will be longer.

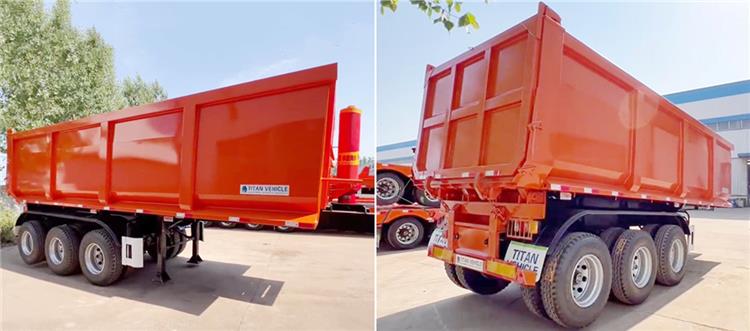

Hydraulic 3 Axle 60 Ton Tipper Trailers Price for Sale Near Me In Nigeria Lagos

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
