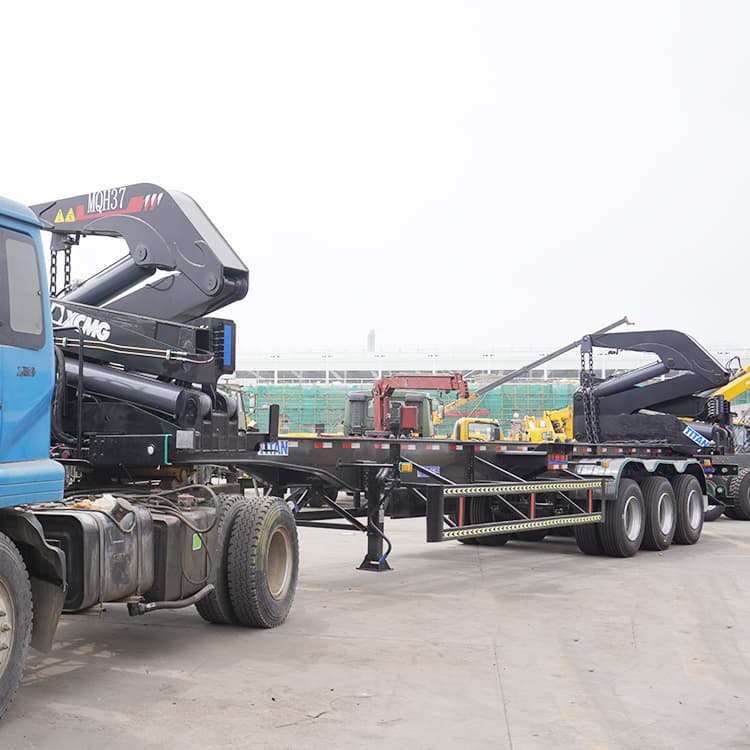

40Ft Sideloader Container Loading Trailer

Sideloader Trailer Description:

TITAN 40ft Trailer Lifter can be moved back and forth and can be used for standard 20ft and 40 ft containers.

40ft Container loading trailer adopts wireless remote control system and is equipped with imported remote control, which is easy to operate and reliable in micro-movement. The manual operation mode remains. Equipped with imported solenoid valve, accurate control.

Trailer Lifter | Sideloader Trailer | Container Loading Trailer

Trailer Lifter | Sideloader Trailer | Container Loading Trailer

Trailer Lifter | Sideloader Trailer | Container Loading Trailer

Container Loading Trailer Specification:

Max. lifting capacity: 37Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

Package of Sideloader Trailer:

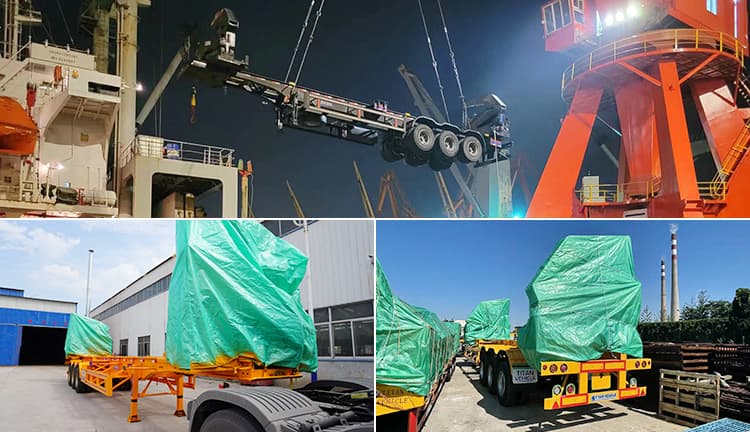

TITAN has professional packaging solutions. In order to prevent the 40ft sideloader trailer from rusting in contact with water during transportation, TITAN will spray a layer of waterproof wax before packaging. At the same time, the trailer lifter will also be covered with a rain cloth to protect against bad weather.

At the same time, the rain cloth can also effectively prevent scratches and ensure that the trailer is in good condition when it is delivered to the customer.

Trailer Lifter | Sideloader Trailer | Container Loading Trailer

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
