5 Axle Low Loader

Description of Low Loader

The 5 axle low loader is a semi-trailer suitable for transporting large machinery and goods. Its platform height is low, which can meet the needs of over-limit width and height. It also improves the efficiency of cargo handling.

5 Axle Low Loader for Sale Price in Ghana

5 Axle Low Loader for Sale Price in Ghana

Advantages of Low Loader

1. The safety performance of low loader is widely recognized in the field of freight transportation. It has excellent braking system, chassis protection device and other equipment, which can ensure the stability and safety of the goods when driving on the road.

2. 5 axle low loader has better handling. Its adjustable suspension system can provide a more stable driving experience, allowing the driver to reduce the impact on road conditions, and can easily handle driving operations in complex environments.

3. The low loader for sale can be modified for different transportation needs to meet the actual needs of different transportation. Compared with other models, low loader has stronger flexibility and adaptability.

Specification of Low Loader

Overall dimension: 16000mm * 3000mm *3400mm(depends on final design)

Loading capacity(T): 100T

Axle: 5 axles, 13T/16T, FUWA / BPW Brand

Tire: 20 units, 11.00R20 or 12R22.5

Suspension: Mechanical suspension or Air suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

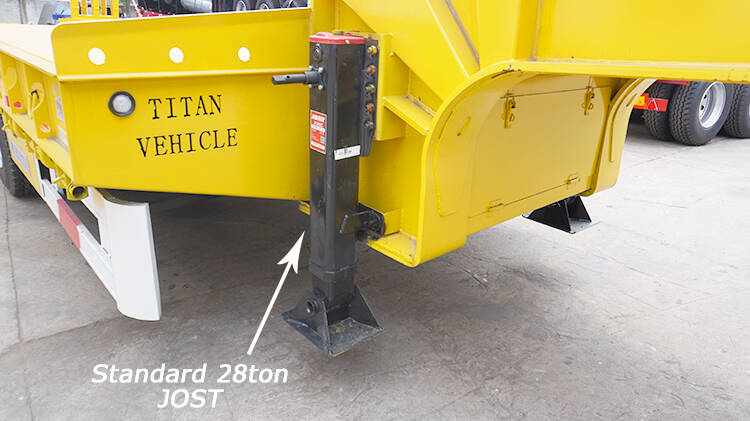

Landing gear: Standard 28ton or JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

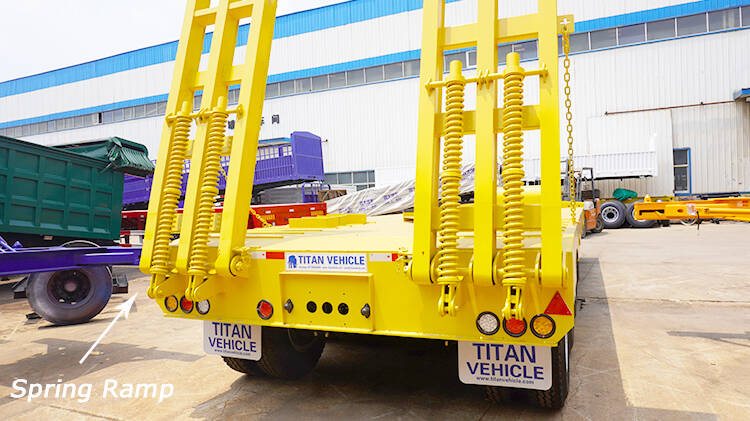

Ramp: hydraulic type

Valve: WABCO valve

Light: LED light

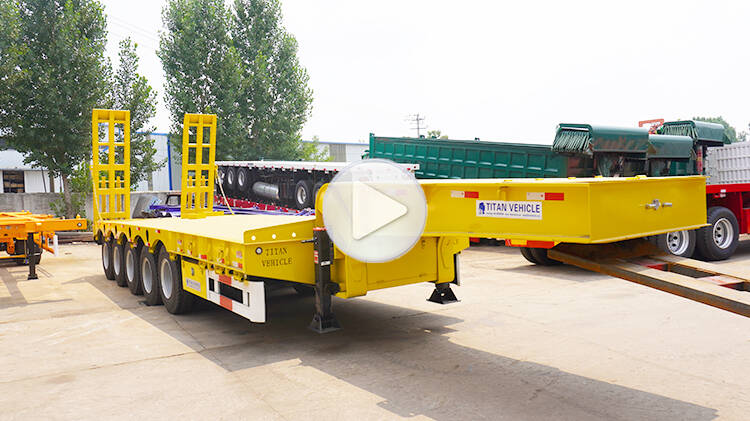

Video of Low Loader

You can also click "TITAN Low Loader" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
