8 Axle Extendable Wind Blade Transport Trailer

Extendable Wind Blade Trailer Description:

8 axle extendable wind blade transport trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine.

The stretchable telescopic beam could be 3 or 4 parts. Total length can reach up to 62 meters.

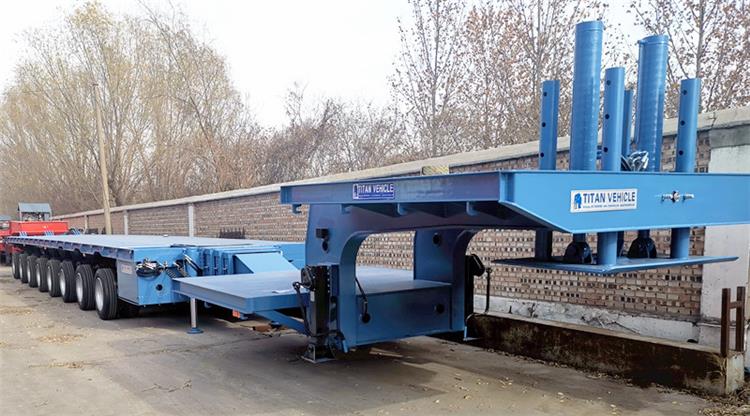

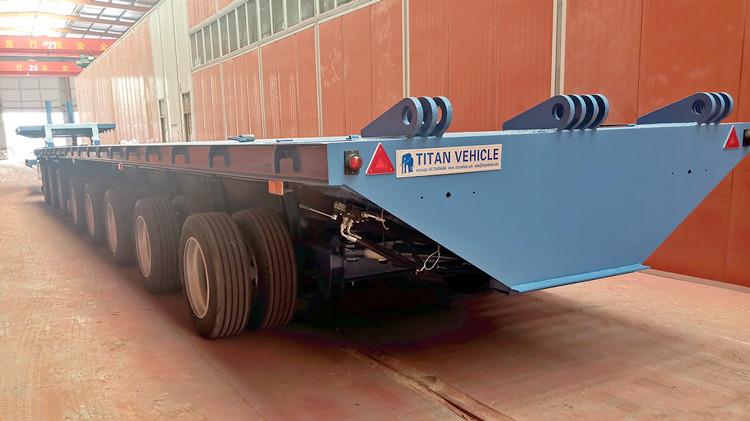

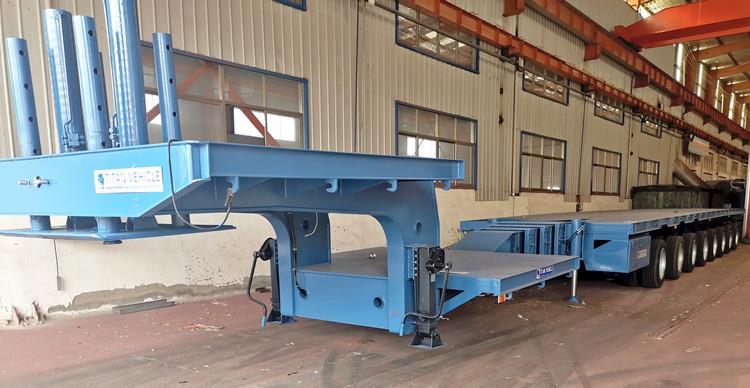

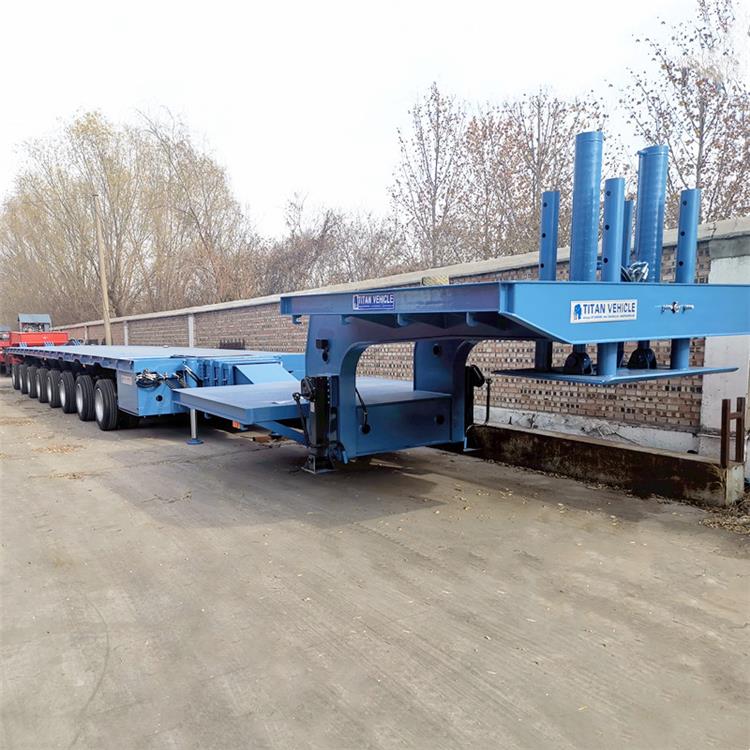

8 Axle Extendable Wind Blade Transport Trailer for Sale

8 Axle Extendable Wind Blade Transport Trailer for Sale

8 Axle Extendable Wind Blade Transport Trailer for Sale

Extendable Trailer for Sale Specification:

Brand: TITAN 8 Axle Extendable Wind Blade Transport Trailer for Sale

Closed length: 24150mmX3000mmX 1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 8 axle

Suspension: Hydraulic suspension

Tire: 32 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200

Wind Blade Transport Trailer Advantages:

1. The general extendable wind blade transport trailer is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.

2. The extendable trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.
