Tri Axle 60ton Fence semi trailer

Name: Tri Axle 60ton Fence semi trailer
Rating: 0.00 (0 reviews)

3 axle 60 ton fence semi trailer mainly used for transportation of agricultural and sideline products and other bulk cargo. Also We have 2/3/4 bridges with a load capacity of 30/40/60/80/100 tons for your choice. Customizable side wall height.

SKU:

GTIN:

MPN:

Brand:

Fence Semi Trailer Description：

Fence cargo trailer was popular by logistics companies as its multipurpose application.It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.Livestock transport truck trailer can be used to load the containers after adopt the container locks for it.

TITAN production the sidewall trailer fence semi trailer adopts high-quality material, important accessories and configuration all adopt domestic and aboard brands.

Main beam adopts Q345 high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.

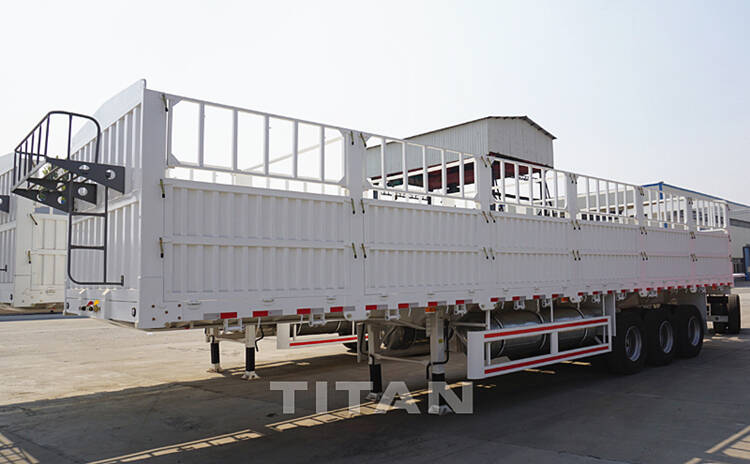

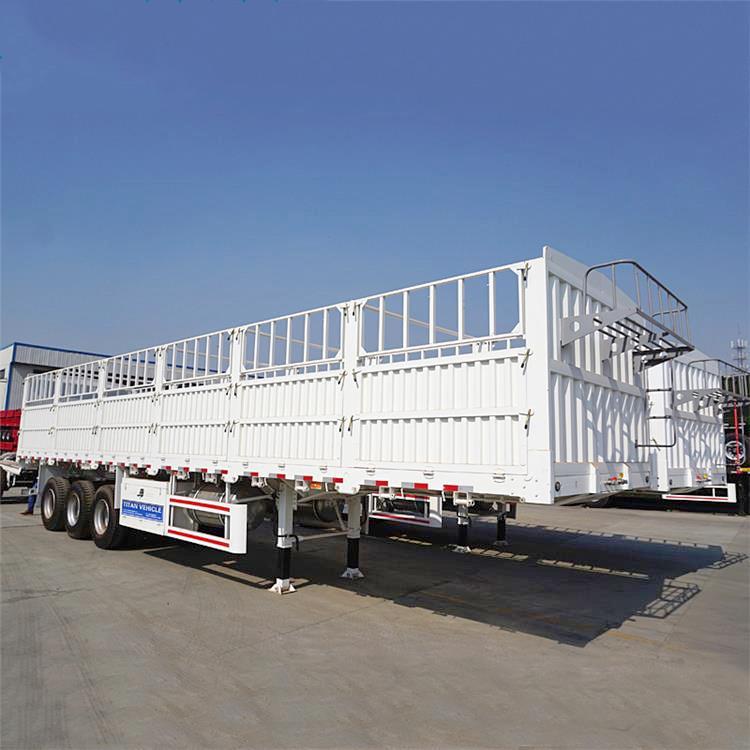

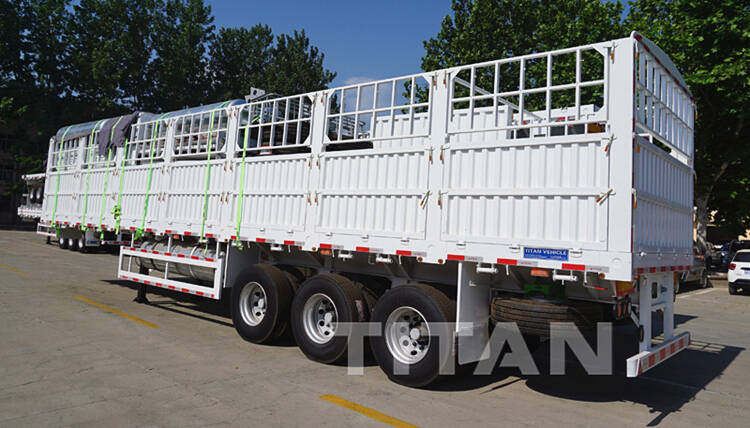

Fence semi trailer stakes livestock transport truck trailer

Fence Semi Trailer Specification:

Model: 3 axle 60 ton sidewall trailer

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Loading capacity(ton): 60-80T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Fence Semi Trailer Advantages:

1. TITAN fence semi trailer adopts high strength steel to produce the body. It can make sure the livestock transport truck trailer have higher loading capacity and longer service life.

2. The poultry transport truck trailer flatbed is a skid checkered plate, which will make bulk cargo more stable and reduce damage to goods in transit.

3. The height of the fence semi trailer varies from 400 to 500, the longitudinal beam is welded by automatic submerged arc welding technology, and the transverse beam penetrates the longitudinal beam and is welded as a whole.

4. TITAN will also provide the most professional after-sale service to our customer. We will cover tarp on the trailers to protect fence trailer, which is totally for free.

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
