Auman ETX 30 Ton Dump Truck

Foton ETX Dump Truck Description:

Auman ETX foton 30 ton dump truck come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All ETX dump trucks meet the requirements of harsh off-highway dump truck working conditions, with power output ranging from 270-440 hp.

Foton ETX dump truck feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.

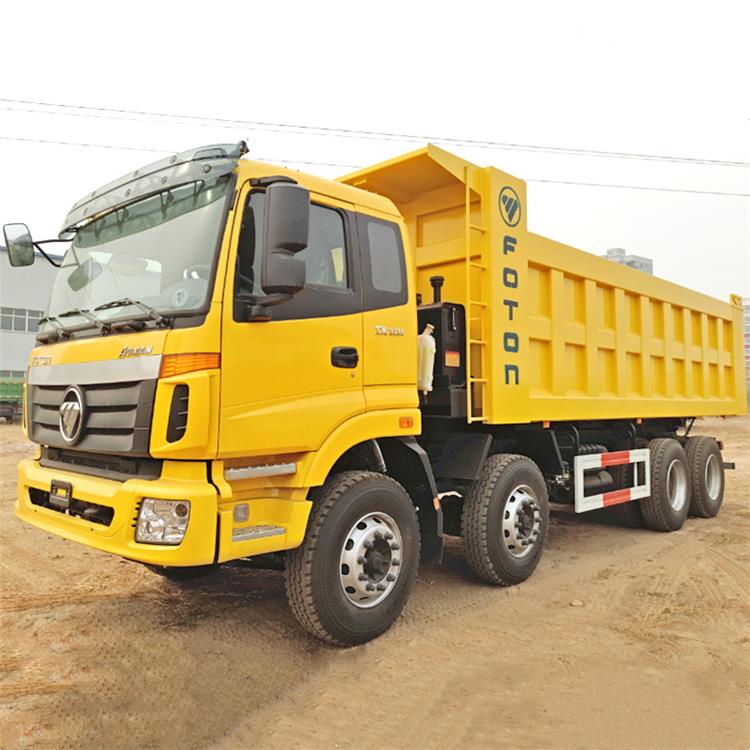

Foton Auman ETX 30 Ton Dump Truck for Sale in Nigeria

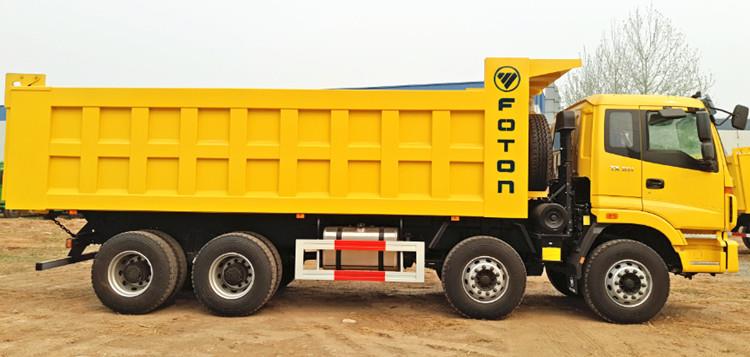

Foton Auman ETX 30 Ton Dump Truck for Sale in Nigeria

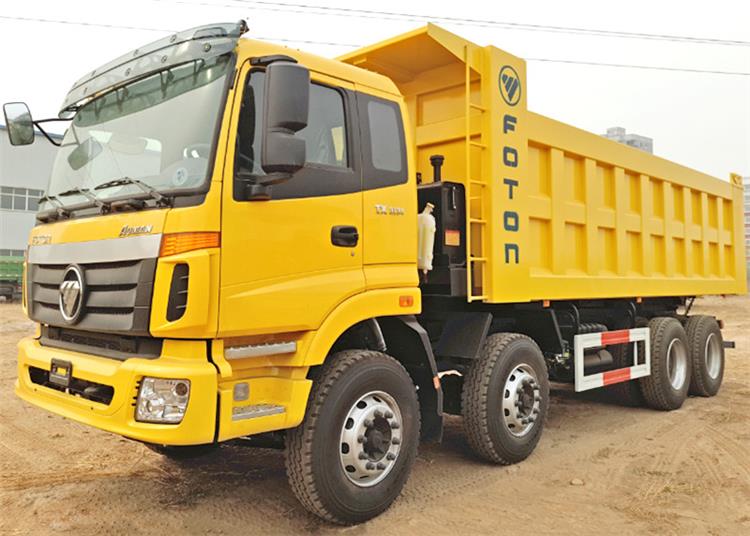

Foton Auman ETX 30 Ton Dump Truck for Sale in Nigeria

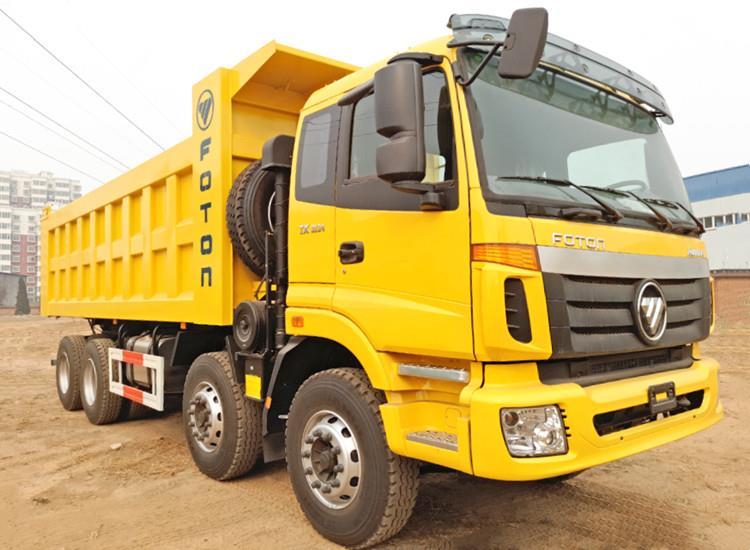

Foton Auman ETX 30 Ton Dump Truck for Sale in Nigeria

Specification of 30 Ton Dump Truck:

Drive type: 8x4

Wheel base(mm):1800+3250+1350

Overall dimension(mm): 9780*2495*3400

GVW(Kg): 41000

Engine:

Model: WD12.336

Max power (ps/rpm): 336(2200)

Max torque (Nm/rpm): 1350(1300-1500)

Displacement (ml): 11596

Emission standard: Euro Ⅱ

Gearbox: FAST, 12JSD160T(PTO)

Front axle: 7.5T

Rear axle model: 13T double reduction

Quantity of leaf spring: 12/14

Standard configuration:

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Safety:

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake: Dual circuit compressed air brake

Parking brake: Spring energy, compressed air operating on rear wheels

ABS: Provided

Chassis:

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification: 12.00-20

Number of tyres: 13+1

Advantages of Auman ETX Dump Truck:

1. Reliable Transmission

FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.

2. High Payload Capacity of Frame

Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton dump truck for sale in nigeria has a higher load capacity than other similar in-class trucks.

3. Large Clearance

Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.

4. High Payload Capacity of Suspension

Suspension is strengthened with gusset plate to reduce frame flex. Double U-Bolts are used to support the higher load. Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.

5. Mature Powertrain

ETX dump trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton dump truck for sale in Nigeria has proven reliable on the market and are a favorite choice among customers. ETX dump trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
