20Ft Sideloader Container Truck Trailer

Sideloader Container Truck Description:

The TTIAN 20ft sideloader container truck breaks through the design concept of the previous container loader trailers, realizes the integration of container loading, unloading and transportation, and improves the efficiency of container transportation. As a sideloader container truck trailer that can both transport and load and unload containers, the sideloaders container truck trailer has strong maneuverability and high work efficiency.

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica

Sideloader Truck Specification:

Max. lifting capacity: 37Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm

Axle: 2 axle* 13 ton (220mm brake pads)

Tire: 8 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica

Advantage of Sideloaders for Sale:

1. The hanging chain twist-lock mechanism for container loading and unloading, the twist-lock is automatically rotated and locked in the container corner pieces during the packing operation, and will not fall off, ensuring the safety during operation;

2. During transportation, the twist lock can still be automatically locked through the limit device, which relieves the repetitiveness of the operator to transport the chain and unload the chain, and also greatly improves the safety during driving;

3. After the operation, by optimizing the movement track of the lifting point and the position of the chain retraction, the automatic storage of the hanging chain during the recovery process of the boom is realized, which greatly improves the comfort of operation and the safety of the whole vehicle.

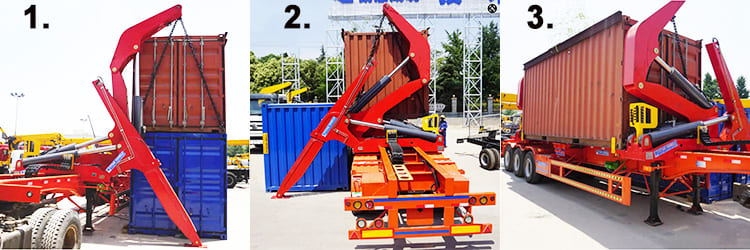

 Loading Process of Sideloader container truck trailer

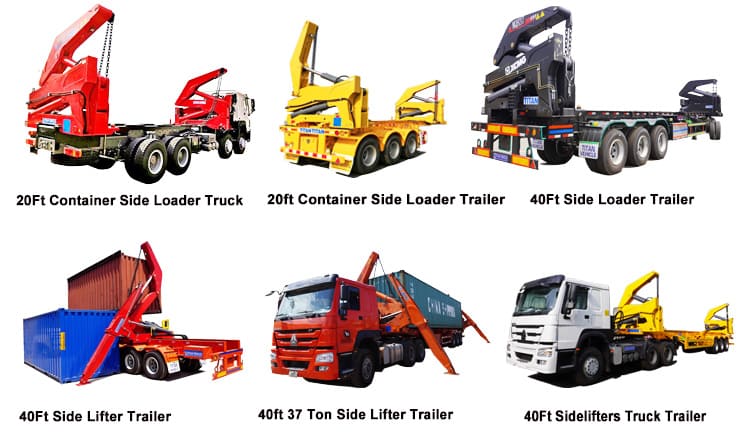

Other Sideloaders Container Truck:

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
