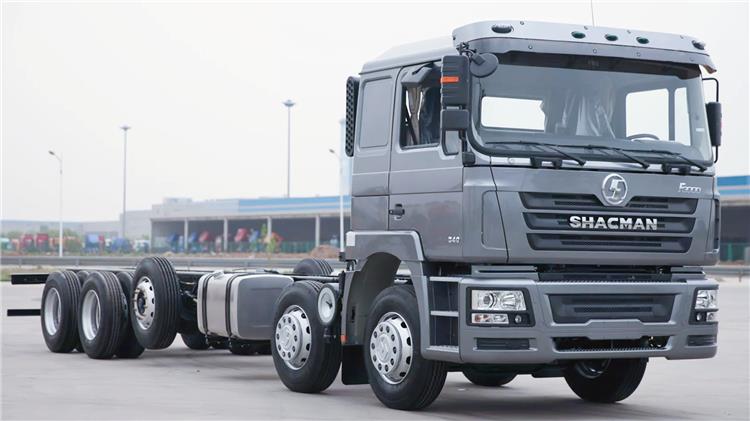

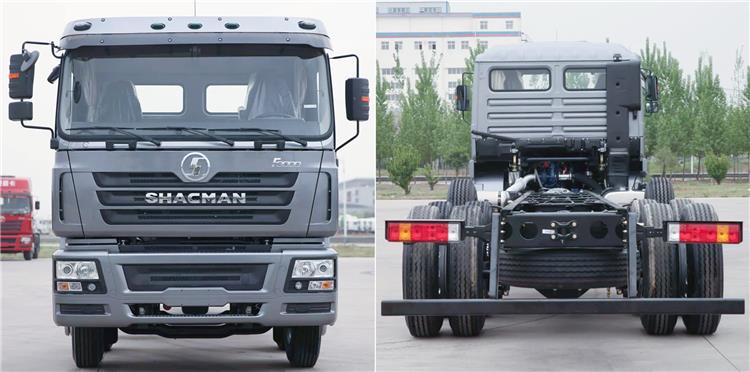

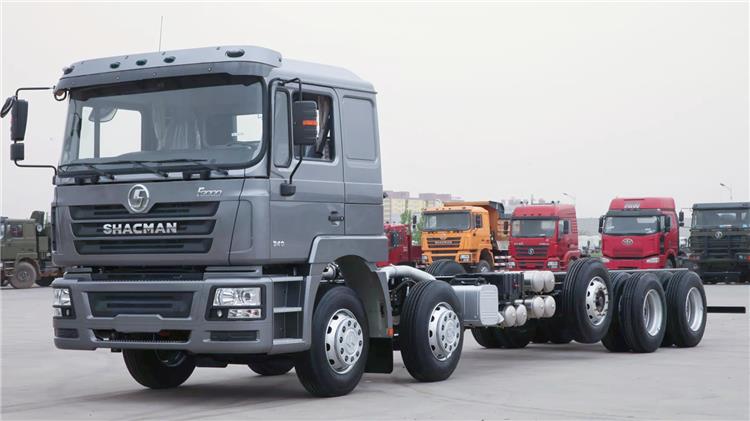

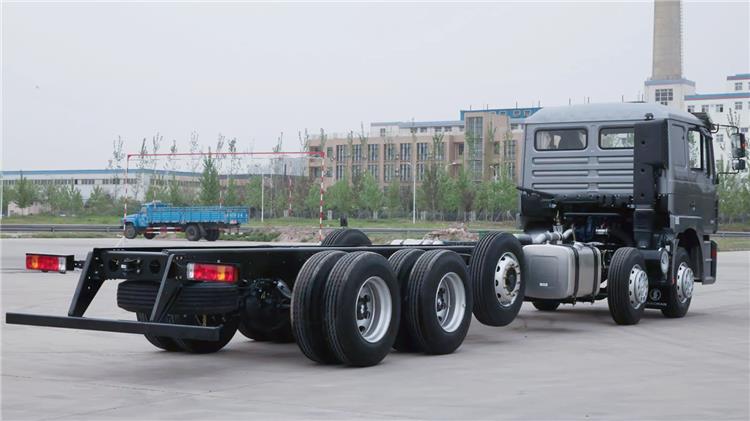

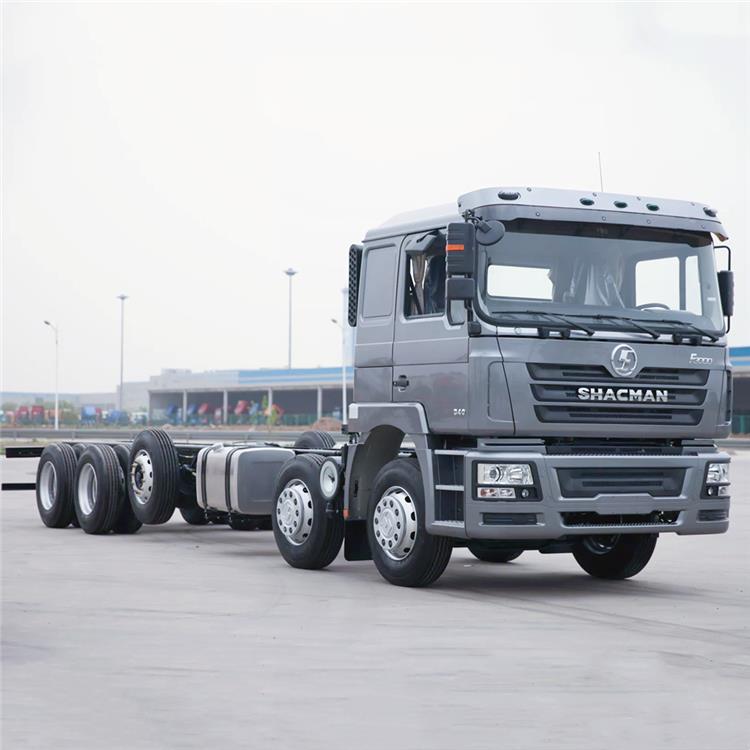

Shacman Cargo Truck F3000

Shacman Cargo Truck Description:

Shacman cargo truck multifunction steering wheel with flat-bottom design with cruise control, voice control and bluetooth phone functions

Since the launch of Shacman cargo truck, with its meticulous design concept, the vehicle has become more humanized, safer, smarter and more convenient to use.

Shacman Cargo Truck |  Shacman F3000 Truck Price for Sale

Shacman Cargo Truck |  Shacman F3000 Truck Price for Sale

Shacman Cargo Truck |  Shacman F3000 Truck Price for Sale

Shacman Cargo Truck |  Shacman F3000 Truck Price for Sale

Shacman Truck for Sale Specification:

Brand: Shacman truck for sale

Drive model: Left or right driven hand, 10x6

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller RT11509C gearbox with 9 forward and 1 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 7.5 tons

Rear suspension: inverted leaf spring with stabilizer

Steering Model: 8098 integral circuiting ball power steering

Ratio:22.2-26.2:1

Instrument panel: Combined instrument panel

Rear axle: Styre13 tons with hub reduction ratio 1:4.8

Chassis: Various width, front 940mm and rear 850mm

Cargo dimension Volume(mm): 9000X2326X500/800

Other: A/C, enlargement radiator, ABS

Shacman f3000 price Engine:

Engine model: Weichai WD12.375

Power(Kw/Hp): 276/375

Speed(r/min):2200

Idle speed(r/min):600-800

Max torque(N.m):1500

Stroke(mm):126/155

Displacement(L):11.596

Min.fuel consumption(g/Kw.h):≦198

Engine oil filling volume:39L

The thermostat opened at 82℃

Oil pump: P12

Type: mechanically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-2 or emission standard

Shacman cargo truck Electrics:

Starter: 7.8kw,24V

Alternator: 1.54kw(28V,70A)

Battery: 180AH

Shacman cargo truck Brakes:

Running brake: Dual circuiting compressed air brake

Tyre: 12.00-20/12.00R20/12.00R22.5,13pcs

Cabin: Man F2000 flat head with two seats and one sleep with A/C

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Shacman cargo truck Dimension (mm):

Wheel base:4600+1350+1800

Front wheel track:2036

Rear wheel track:1860

Front overhang: 1525

Rear overhang: 3070

Overall length: 12025

Overall width:2490

Overall height: 3770

Approach angle: 20°

Departure angle: 11°

Fuel tank(L): 380L

Weight(Kg):

GVW:31000

Front axle loading capacity:7500X2

Rear axle loading weight: 13000X2

Performance:

Max. running speed(km/h):96

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
