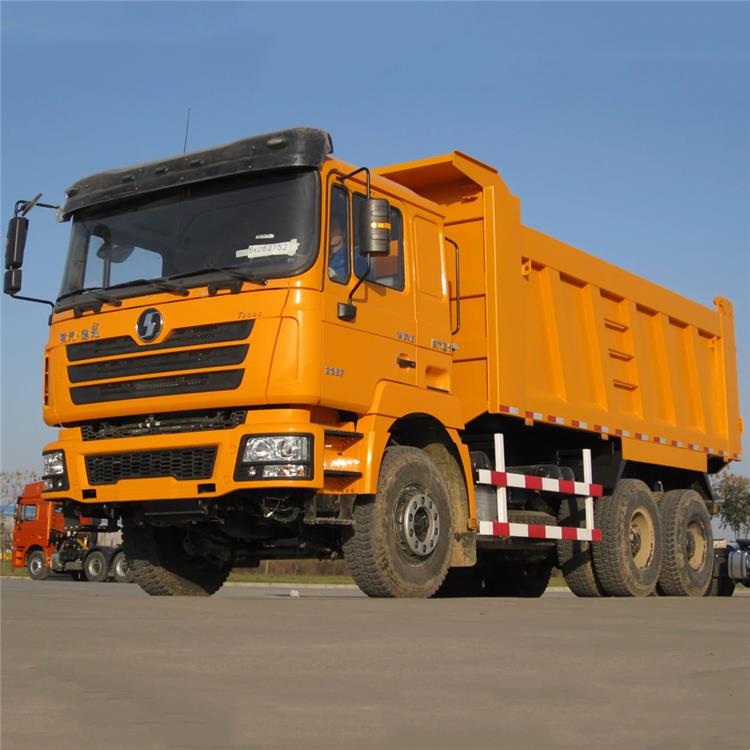

Shacman F3000 10 Wheeler Dump Truck

Shacman F3000 10 Wheeler Dump Truck Description:

Shacman F3000 price mainly from the front axle, rear axle, suspension system, frame and other configurations, the combination of different product configurations, according to the bearing capacity, drive form, will be divided into lightweight, composite version, enhanced version, super version of four version types, can meet different working conditions, different cargo volume user needs.

Under the condition of the same drive, the Shacman F3000 price carrying capacity of the four versions increases from small to large, covering all kinds of transportation requirements from standard load to the total weight of shacman 10 wheeler dump truck and cargo 120T.

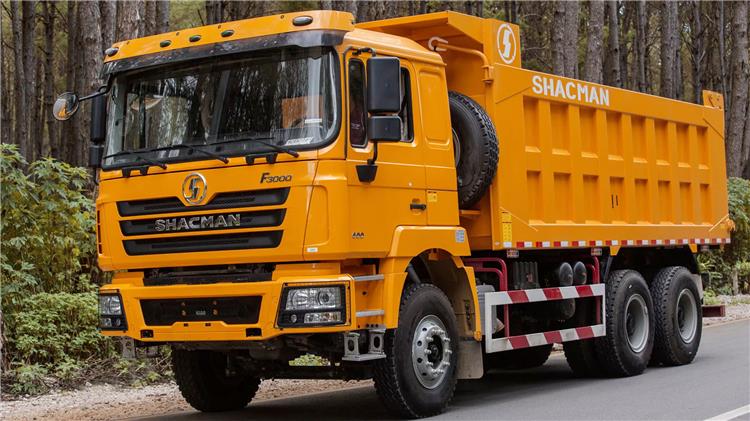

Shacman F3000 10 Wheeler Dump Truck Price - Shacman

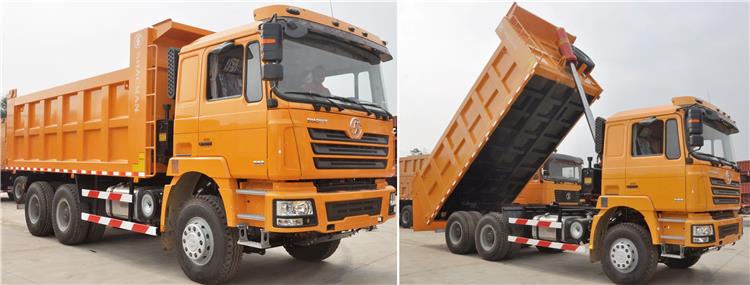

Shacman F3000 10 Wheeler Dump Truck Price - Shacman

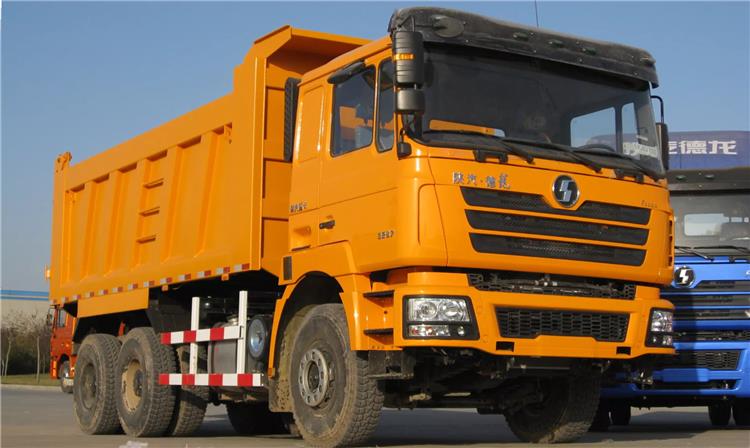

Shacman F3000 10 Wheeler Dump Truck Price - Shacman

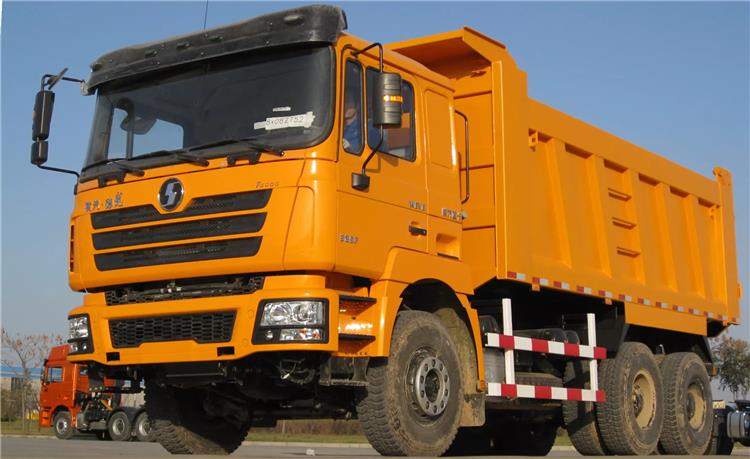

Shacman F3000 10 Wheeler Dump Truck Price - Shacman

Shacman 10 Wheeler Dump Truck Specification:

Brand: Shacman F3000 10 Wheeler Dump Truck

Truck Model: SX3257DR324

Drive model: Left or right driven hand, 6X4

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 7.5 tons

Rear axle: Styre13 tons with hub reduction ratio 1:4.8

Chassis: Various widths, front 940mm and rear 780mm

Rear suspension: inverted leaf spring with stabilizer

Instrument panel: Combined instrument panel

Tyre: 12.00-20/12.00R20/12.00R22.5,11ps

Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab

Other: enlargement radiator, ABS

Engine:

Engine model: Weichai WP10.336

Power(Kw/Hp): 247/336

Speed(r/min):2200

Idle speed(r/min):600-800

Max torque(N.m):1250

Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard

Stroke(mm):125/147

Displacement(L):9.726

Min.fuel consumption(g/Kw.h):≦198

Engine oil filling volume:39L

Thermostat Opened at 82℃

Oil pump: Bosch

Steering:

Model: 8098 integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes:

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Electrics:

Starter: 5.58kw,24V

Alternator: 1.54kw(28V,55A)

Battery: 135AH

Dimension (mm):

Wheel base:3200+1350

Front-wheel track:1525

Rear wheel track:2036

Front overhang: 1850

Rear overhang: 1450

Approach angle: 28°

Departure angle: 30°

Overall length: 7550

Overall width:2490

Overall height: 3450

Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)

Fuel tank(L): 300L

Weight(Kg):

GVW:25000

Front axle loading capacity:7500

Rear axle loading weight: 13000X2

Performance:

Max. running speed(km/h):90

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
