Howo 10 Wheeler Tipper Truck

Name: Howo 10 Wheeler Tipper Truck
Availability: InStock
Rating: 0.00 (0 reviews)

Advantage of howo 336 hp 10 wheeler tipper truck: Greatly save time and labor for unloading. And we can also provides all kinds of different sinotruk tipper truck for sale to meet your load requirements.

SKU:

GTIN:

MPN:

Brand:

Tipper Truck for Sale Description:

Howo Sinotruk howo 336 tipper truck has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.

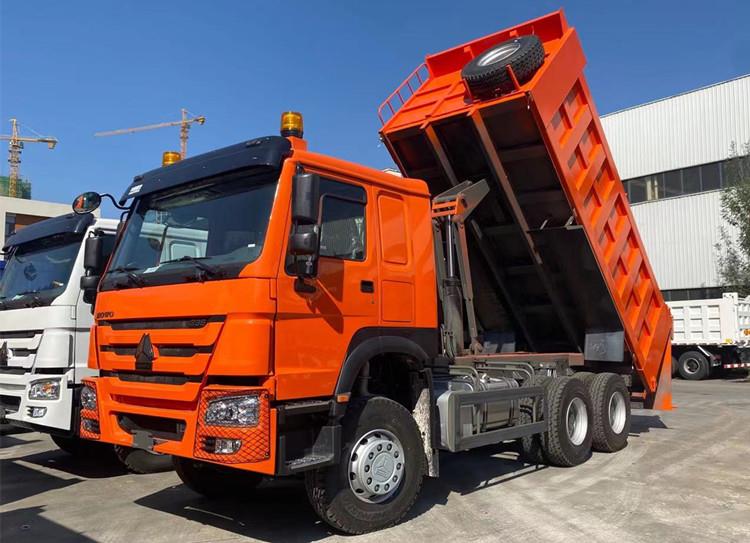

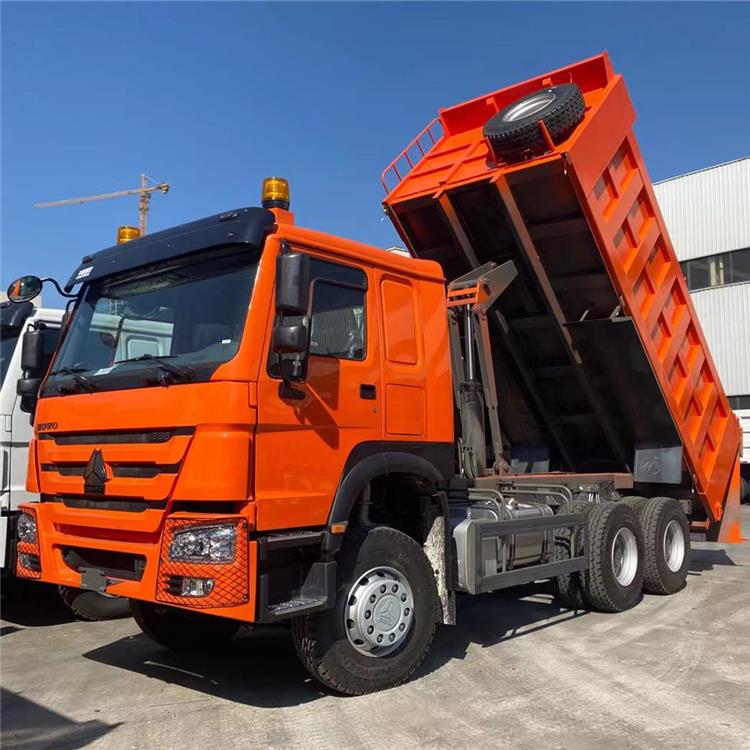

You can choose 6x4 10 wheeler tipper truck cargo body with Front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

Sinotruk Howo 336 hp 6x4 10 Wheeler Tipper Dump Truck for Sale Price

6x4 Tipper for Sale Specification:

MODEL: ZZ3257N3847A

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 13R22.5

CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)

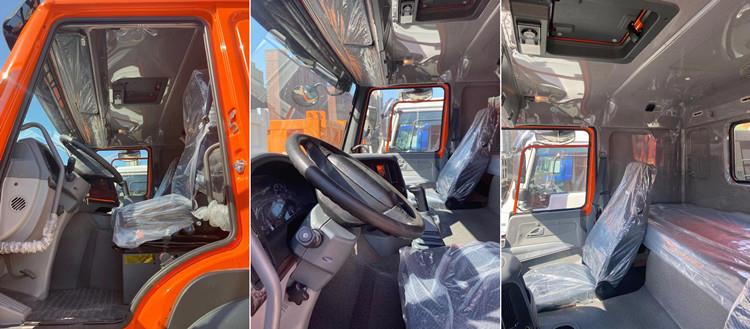

DRIVER CAB:

Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light

DIMENSIONS(in mm):

Wheel base (mm): 3800+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):9745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):13000

Dead weight (kg):12500

Gross vehicle weight (kg):25000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)

Sinotruk for Sale Advantage:

Weichai WP10H400E62 engine is the heart of this truck. This inline six-cylinder turbo diesel engine is with a displacement of 9.5 liters.It’s maximum output a is 294KW and power of 400 horsepower. The maximum torque is 1900 Nm and the maximum torque. The maximum torque speed is 1200-1300 rpm, and the rated speed is 1900 rpm

Matching the WP10H engine is the Sinotruk HW19712 gearbox with a total of 12 gears. The highest gear is the direct gear and the speed ratio is 1. The main box of this transmission is a straight double-shaft structure, the auxiliary box is a planetary structure, and the maximum input torque is 1900 Nm. In addition, a HW50 direct-connected power take-off is installed on the gearbox for dump truck lifting.

About SINOTRUK:

SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.

SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
