2 Line 4 Axle 100t Lowbed Trailer Truck

Description of Lowbed Trailer Truck:

TITAN has been specializing in the export of lowbed trailer for more than 18 years. The company has always been committed to providing customers with road transportation products. It is a special-purpose vehicle manufacturer integrating production and sales. Over the years, the lowbed transport produced by our company have been sold overseas, especially in Africa and Southeast Asia, and have won the satisfaction and trust of our customers.

The lowbed trailer truck is used to load and transport construction machinery, excavators, forklifts, harvesters and other construction machinery. The rear of thelowbed transport is equipped with a ladder and outriggers. It is suitable for long-distance transportation of construction machinery and some non-removable goods. And the 100t lowbed for sale is one of the most popular madel in TITAN.

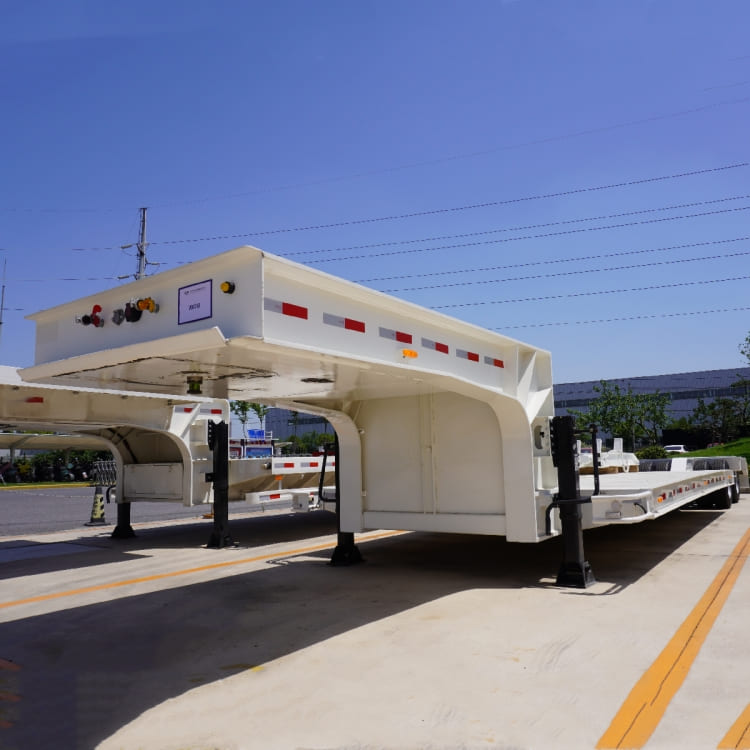

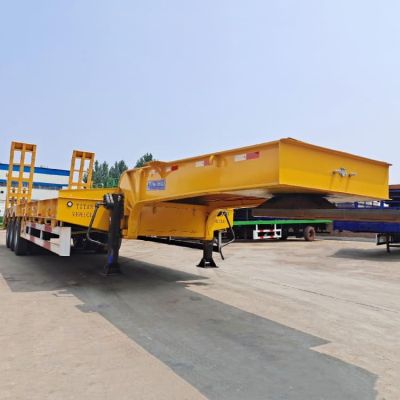

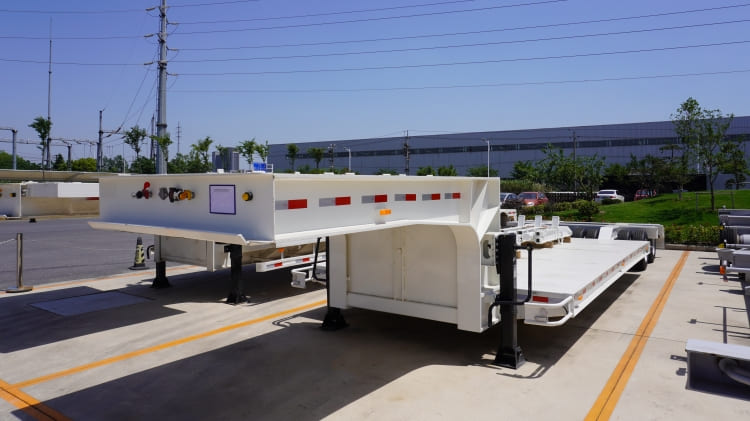

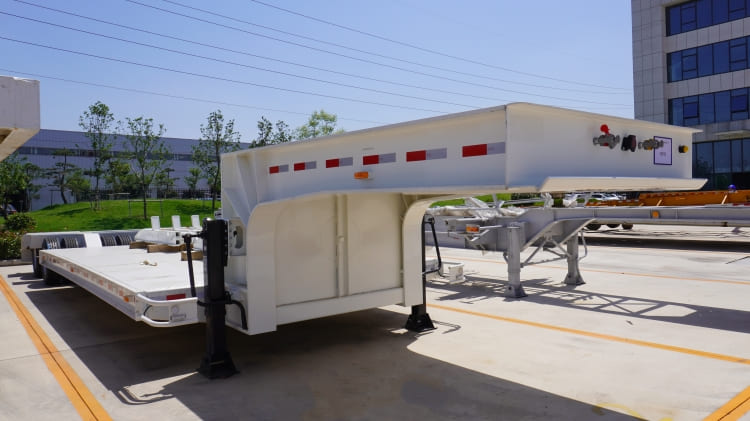

2 Line 4 Axle 100t Lowbed Trailer Truck Transport for Sale in Ghana

2 Line 4 Axle 100t Lowbed Trailer Truck Transport for Sale in Ghana

2 Line 4 Axle 100t Lowbed Trailer Truck Transport for Sale in Ghana

2 Line 4 Axle 100t Lowbed Trailer Truck Transport for Sale in Ghana

2 Line 4 Axle Lowbed Specification:

Model: 2 line 4 axle lowbed trailer

Overall dimension: 15545mm * 2690mm *1500mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 16 units, 14.00R24

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

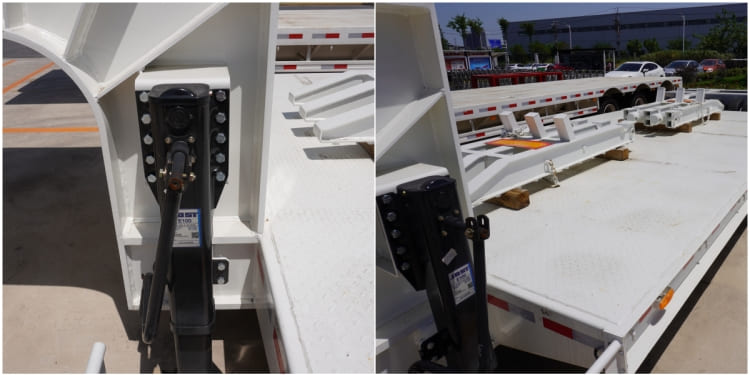

Landing gear: JOST brand/FUWA brand

Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: HG60 high strength steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic ladder/ spring ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Advantages of Lowbed Trailer Truck:

1. The walking structure of the lowbed transport is made of high-strength international steel material, and the whole vehicle is light in weight, and ensures its anti-torsion, anti-vibration, anti-bump ability, and meets the bearing capacity of different road surfaces.

2. The main beam of ourlowbed trailer, is made of HG60 high strength structural steel. For the100t lowbed for sale, compare to other factory, our  lowbed transport main beam not easy to bending deformation. Its bearing capacity is 5 times that of the trailer made of Q345 steel.

3. TITAN lowbed trailer truck main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use, greatly extend the service life.

4. Our through beam of lowbed trailer also use HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm,  the inclined support effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.

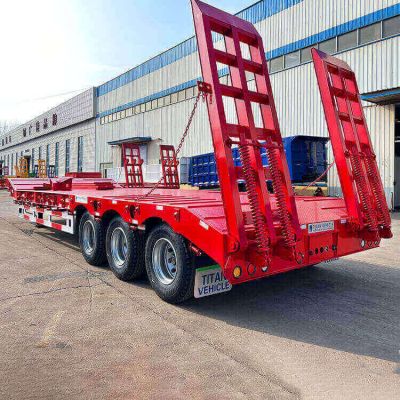

5. The ramp of lowbed trailer truck is welded with HG60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage. In addition, we use the high quality spring, one person can operate the ramp up and down The service can up to more than 5 years.

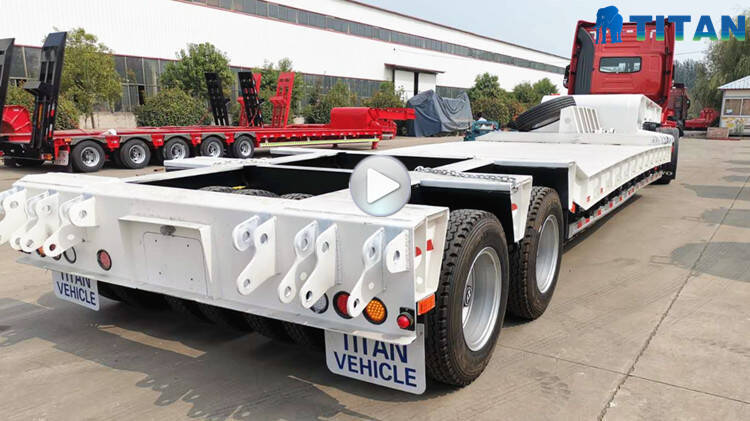

2 line 4 axle 100 ton low loader trailer details display video
