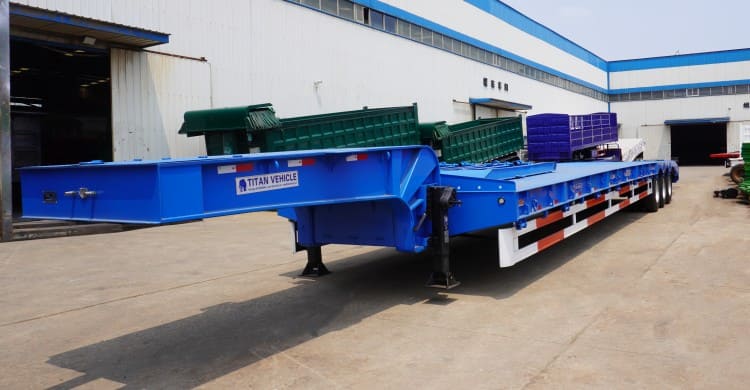

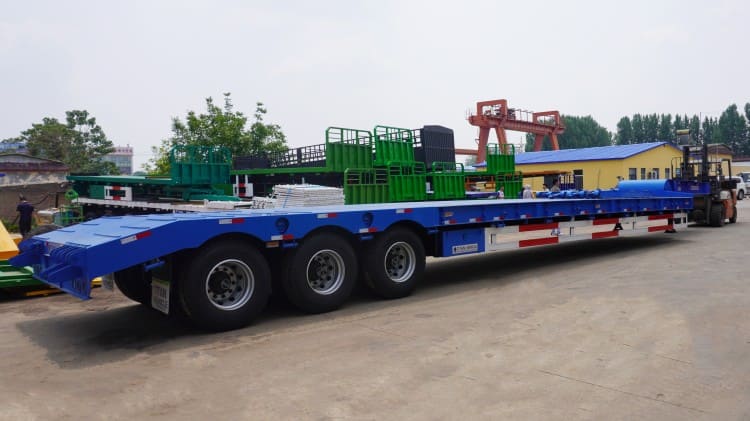

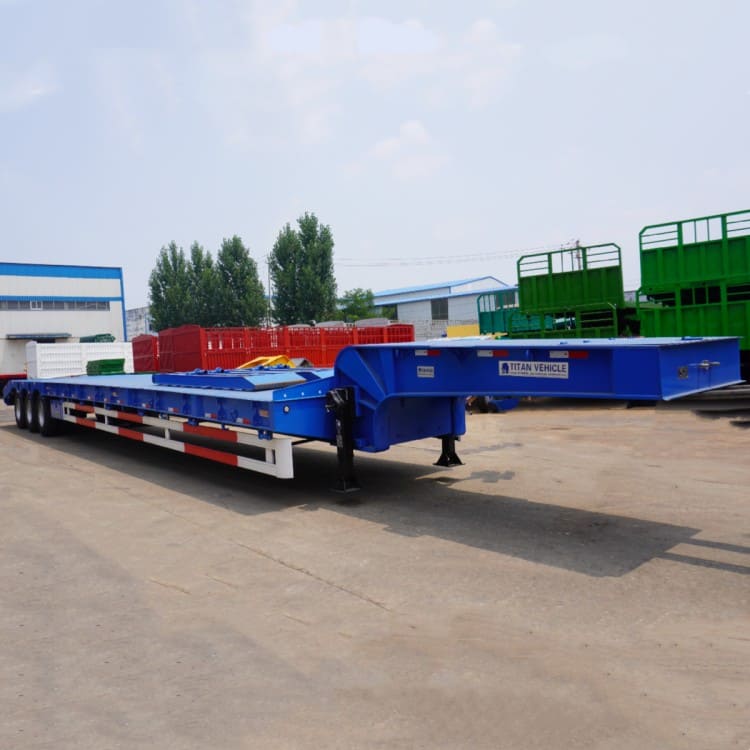

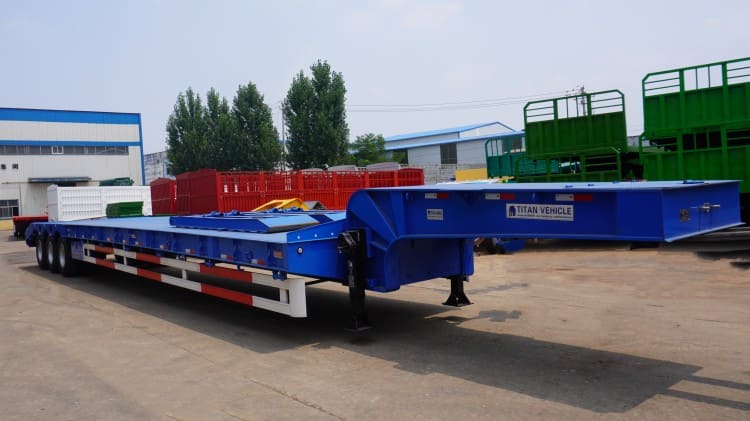

Tri Axle 80 Ton Semi Low Loader Trailer

Low Loader Trailer for Sale Description:

Low loader trailer are usually used to transport heavy machines. For exmaple tractors, buses, special vehicles, etc. rail vehicles, mining machinery, forestry machinery, construction machinery . And the construction machinery mainly have excavators, bulldozers, loaders, road pavers, cranes, etc.

Depending on the number of axles and the size of the tires, the load capacity of the low loader trailer for sale is also different. The more axles, the larger the load capacity, and the load range is between 60-150 tons. TITAN can provides all kind of different size of semi low loader trailer to meet your load need.

Used Tri Axle 80 Ton Semi Low Loader Trailer for Sale in Nigeria Abuja

Used Tri Axle 80 Ton Semi Low Loader Trailer for Sale in Nigeria Abuja

Used Tri Axle 80 Ton Semi Low Loader Trailer for Sale in Nigeria Abuja

Used Tri Axle 80 Ton Semi Low Loader Trailer for Sale in Nigeria Abuja

Used Tri Axle 80 Ton Semi Low Loader Trailer for Sale in Nigeria Abuja

Low Loader Trailer Specification:

Model: Tri Axle 80 Ton Semi Low Loader Trailer

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand/TITAN brand

Main beam: High strength steel

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic ladder/ spring ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Used Low Loader Trailer Advantages:

1, The main beam of TITAN low loader trailer for sale is made of high strength structural steel. High strength structural steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than other steel.

2. TITAN semi low loader trailer main beam gooseneck lower part has a reinforcement, gooseneck double plate. The trailer has a small deformation range under heavy load, which is better to use, greatly improve the service life of  low loader trailer for sale.

3. Through beam design, our  low loader trailer for sale beams also use high strength steel. With a thickness of 6mm, it effectively connects the main beam and the side beams as a whole. The bearing capacity and anti-turbulence capacity are greatly improved, and the service life is more than 10 years.

4. TITAN low loader trailer ramp is also welded with high-strength steel, which has a strong bearing capacity, effectively ensuring that the weight of heavy equipment such as excavators can pass through the spring ramp without deformation or damage. we use high-quality springs, one person can go up and down the ramp The service life can reach more than 5 years, and other manufacturers use channel steel welding, which is easy to deform and collapse; in addition, we use high-quality springs, one person can go up and down the ramp.
