3 Axle 45000 Liters Oil Tanker Trailer

Oil Tanker Trailers for Sale Description:

Oil tanker trailers for sale adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. The volume of the 3 Axle 45000 Liters Tanker trailers for sale  can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters.

TITAN offers carbon steel, stainless steel or aluminum material tanker trailers. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.

3 axle 45000 liters oil tanker trailers used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc. With the different compartments, like two, three, four, or more compartments, to load different liquid.

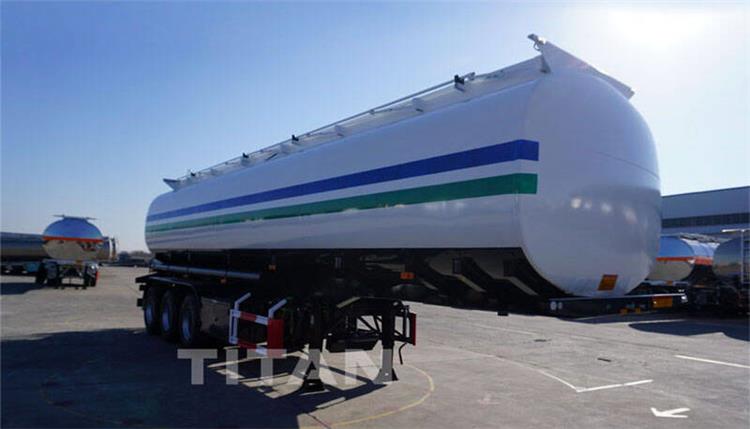

3 Axle 45000 Liters Oil Tanker Trailers For Sale In Jordan

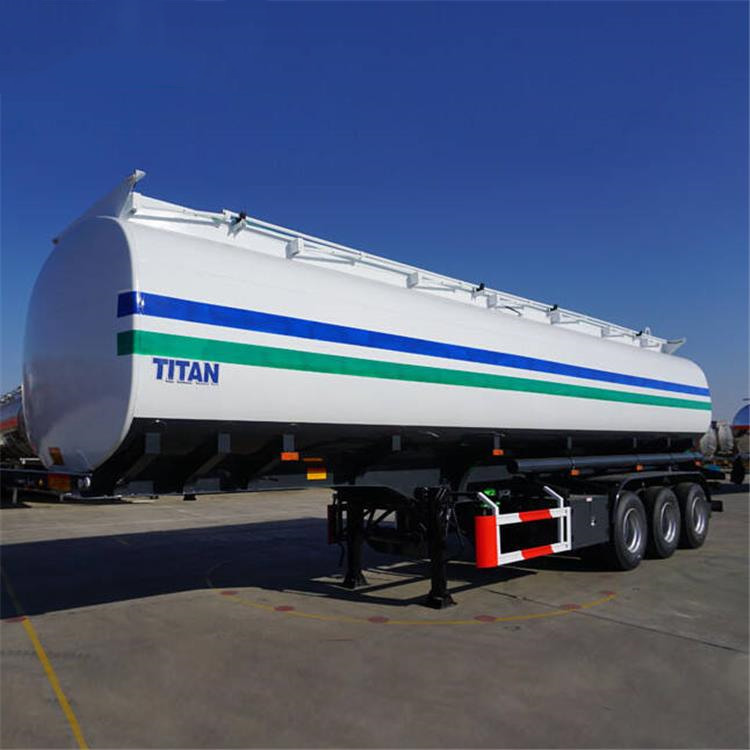

3 Axle 45000 Liters Oil Tanker Trailers For Sale In Jordan

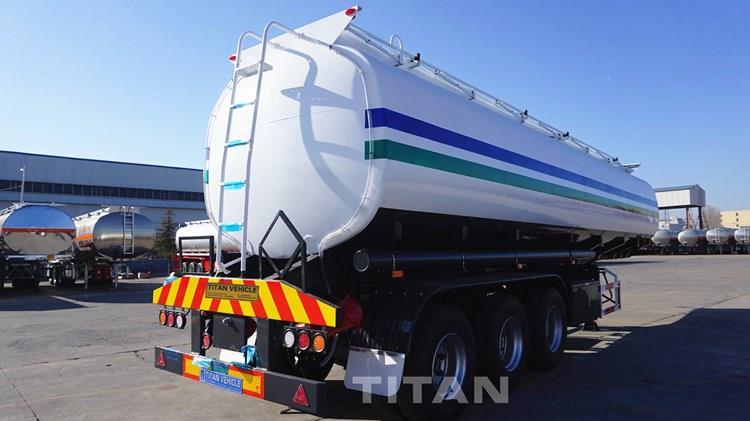

3 Axle 45000 Liters Oil Tanker Trailers For Sale In Jordan

Specification of Oil Tanker Trailers：

Shape: Round

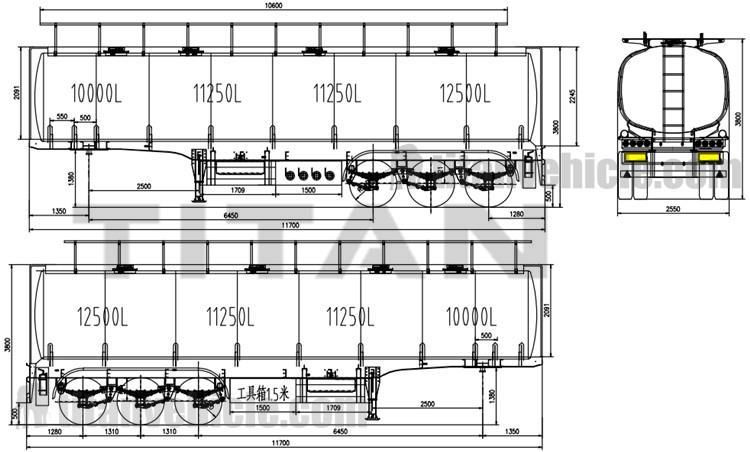

Dimension: 10600mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 45000 liters

Tank Body Material: 5mm or 6mm aluminum steel

End plate: 5mm or 6mm aluminum steel

Manhole Cover: Carbon steel

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12 units, 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

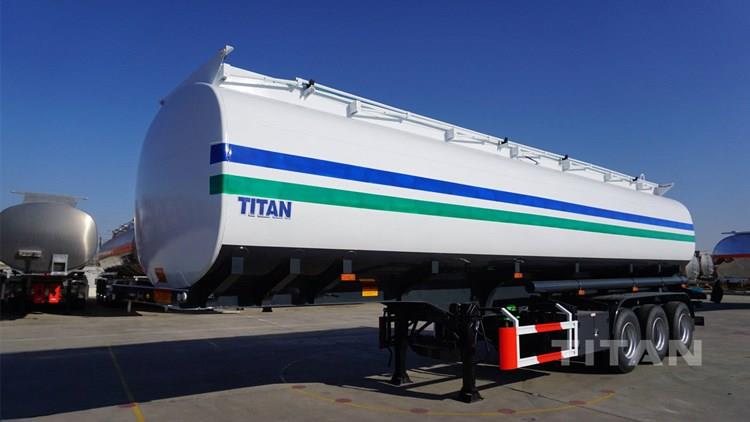

3 Axle 45000 Liters Oil Tanker Trailers For Sale In Jordan

Oil Tanker Trailers Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the oil tanker trailers is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN oil tanker trailers body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water-filled test equipment Water tank to ensure the high seal of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our oil tanker trailers for sale, it saves costs & ensures long-time service.

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
