3 Axle 60 Ton Cargo Sidewall Semi Trailer

Name: 3 Axle 60 Ton Cargo Sidewall Semi Trailer
Rating: 0.00 (0 reviews)

As a professional sidewall trailer manufacturer, TITAN has been committed to producing cargo sidewall trailer for more than 18 years since 2004. TITAN has successfully exported trailers to dozens of countries around the world, and has won high praise locally, especially in regions such as Africa, South America and Southeast Asia. TITAN is committed to providing customers with high-quality, cost-effective sidewall semi trailer for saler products.

SKU:

GTIN:

MPN:

Brand:

3 Axle Sidewall Trailer Description:

The sidewall semi trailer for sale is a semi-trailer with a balustrade structure. It has a wide range of uses and is mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods. It has strong applicability and has become the first choice for medium and long-distance freight vehicles. It is characterized by strong cargo carrying capacity, simple and practical design and reliable performance.

The body of the TITAN cargo sidewall trailer is welded with high-quality steel, using advanced welding technology and strict production. The sidewall trailer has a reasonable structure, reliable performance, easy operation and beautiful appearance.

And the 60 ton sidewall trailer is one of most popular model in TITAN. In addition, we can also provide you with a variety of different models and specifications of cargo sidewall trailer, including 2 axle sidewall trailer, 3 axle sidewall trailer, 4 axle sidewall semi trailer for sale, ect.

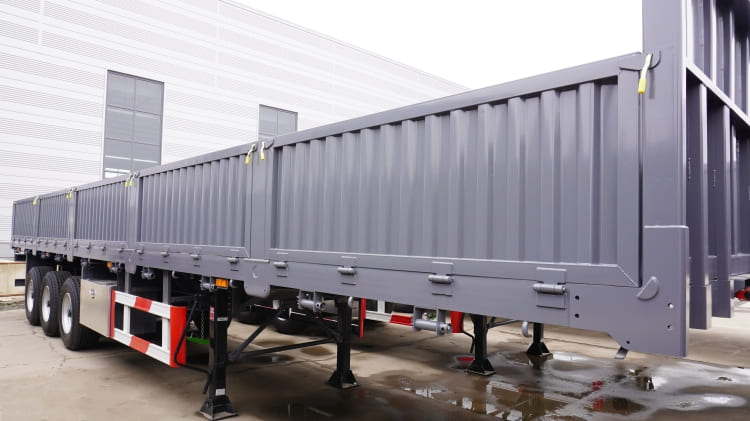

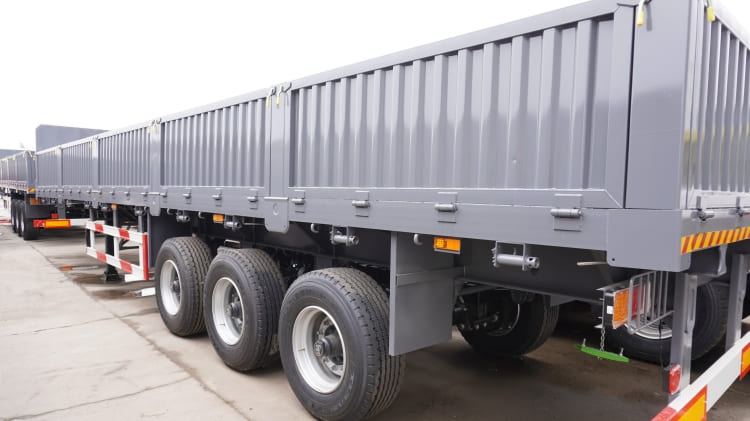

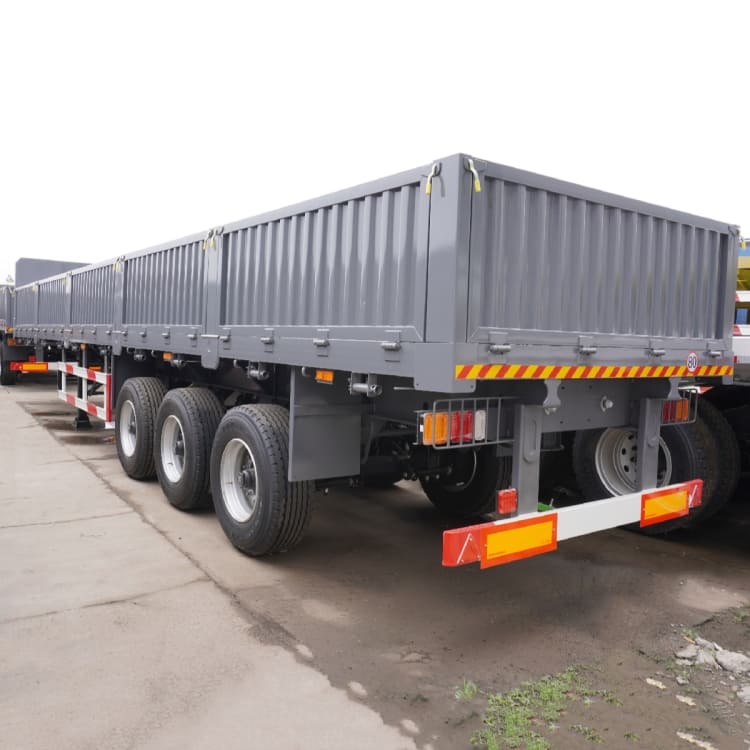

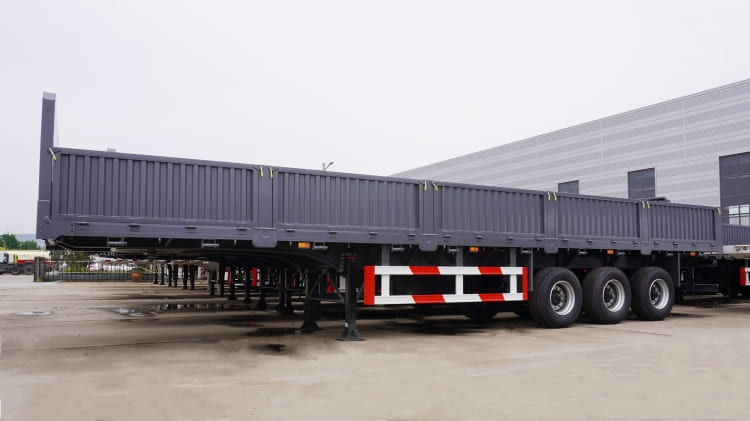

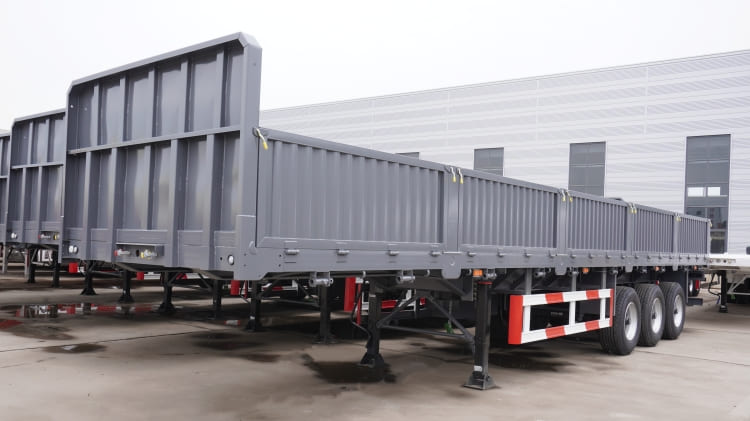

3 Axle 60 Ton Cargo Sidewall Semi Trailer for Sale in Mozambique

60 Ton Sidewall Trailer Specification:

Model: 3 axle 60 ton sidewall trailer

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Cargo Sidewall Trailer Advantages:

1. The suspension of sidewall trailer adopts reinforced mechanical suspension with reasonable structure, strong load capacity, strong rigidity and strength, and is used to support the load and reduce the impact.

2. There are two kinds of traction pin all over the world, TITAN will give both of them to meet all the need of our customer.

3. Titan adopts triple reinforcement on our landing gear, which can greatly extend the service life of sidewall semi trailer for sale.

4. The cargo sidewall trailer features a new special design with multiple reinforcement in many places, allowing the trailer to carry a maximum load of 80 tons. No matter how complex the road conditions can be handled.

4. The whole body is painted by polyurethane to make the sidewall trailer more beautiful and durable. And effective protection of the body of sidewall semi trailer for sale against rust, extend the life of the vehicle.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
