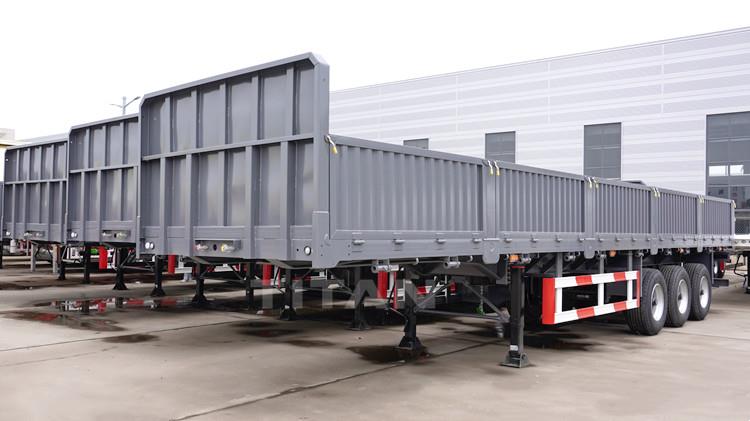

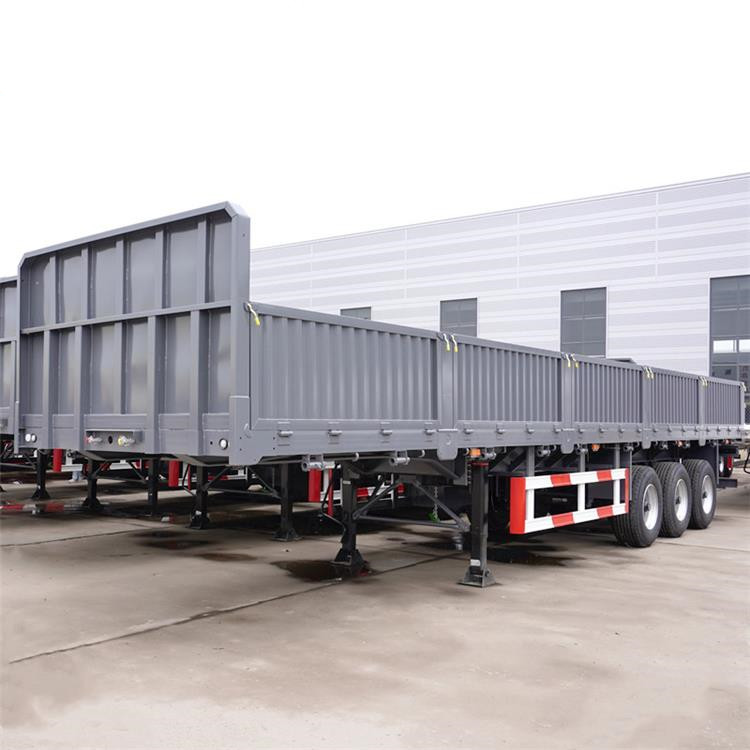

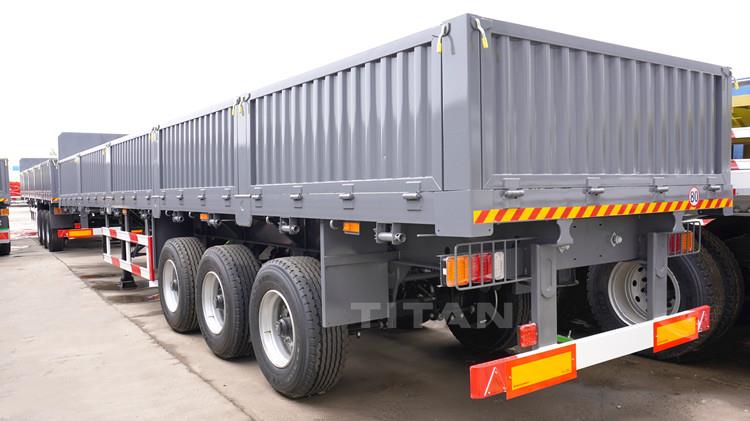

Tri Axle 60T Trailer with Drop Sides

Name: Tri Axle 60T Trailer with Drop Sides
Rating: 0.00 (0 reviews)

Tri-axle trailer with drop sides has a sidewall structure design. We have 2/3/4 axles sidewall trailer, and load capacity has 30/40/60/80/100 tons for your choice. Customizable side wall height.

SKU:

GTIN:

MPN:

Brand:

Side Wall trailer Description:

Side wall cargo truck trailer is usually modified based on flatbed type, or side wall type, by adding boards based on measurements and character of the cargo. Due to its more flexible loading capacity, lighter tare weight, tri-axle trailer with drop sides could be more convenient, practical and safe.

We have 2/3/4 axles, and the load capacity is 30/40/60/80/100 tons to meet your different need. And you can customizable sidewall heights. And the tri axle 60t side wall cargo truck trailer is the most popular model in TITAN.

Tri-axle Trailer with Drop Sides | Side Wall Cargo Truck Trailer for Sale

Side Wall Trailer for Sale Specification:

Dimension(mm): 12500x2500x2350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Side Wall trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the sidewall cargo trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the tri-axle trailer with drop sides, all the spare parts we adopt are world famous brand.

3. Side wall cargo truck trailer floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.

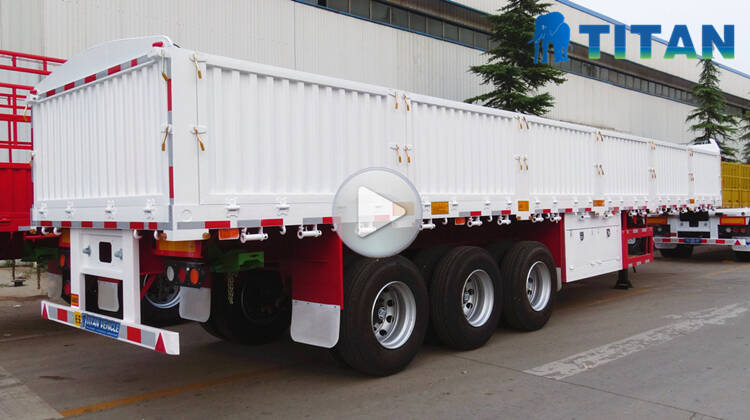

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
