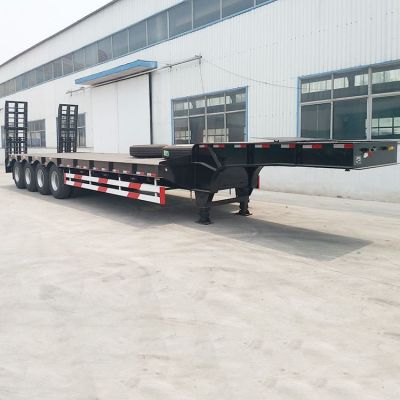

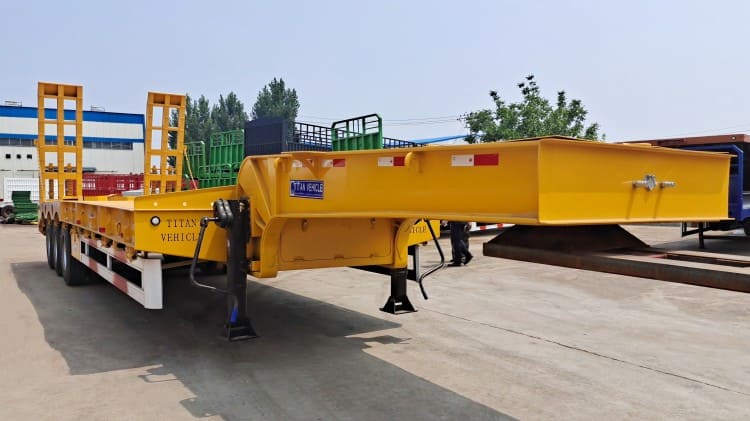

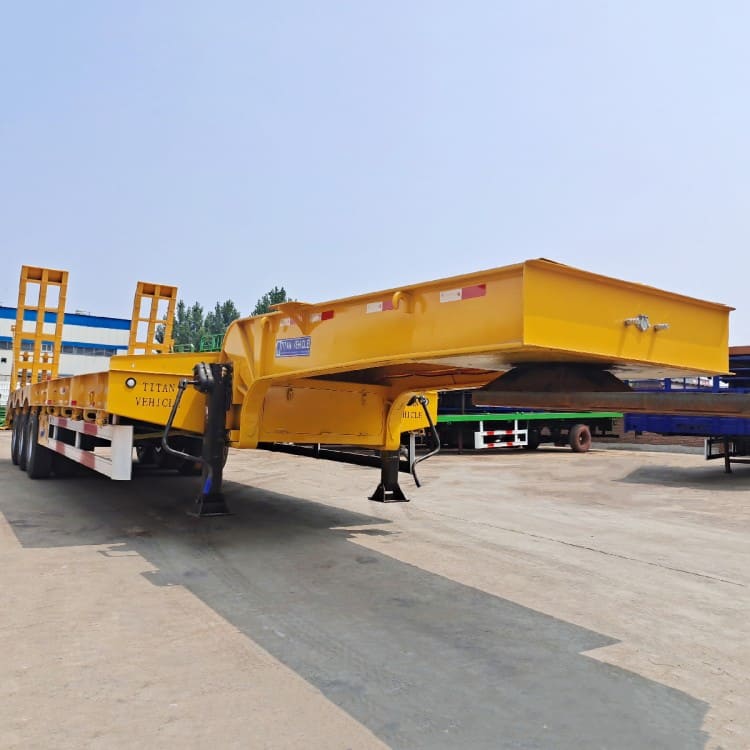

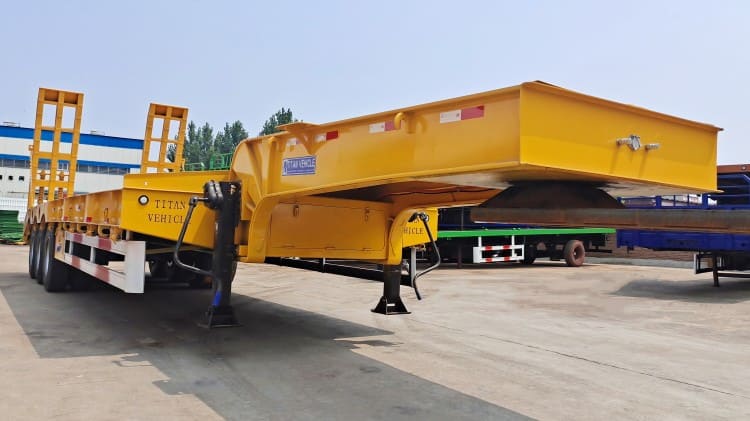

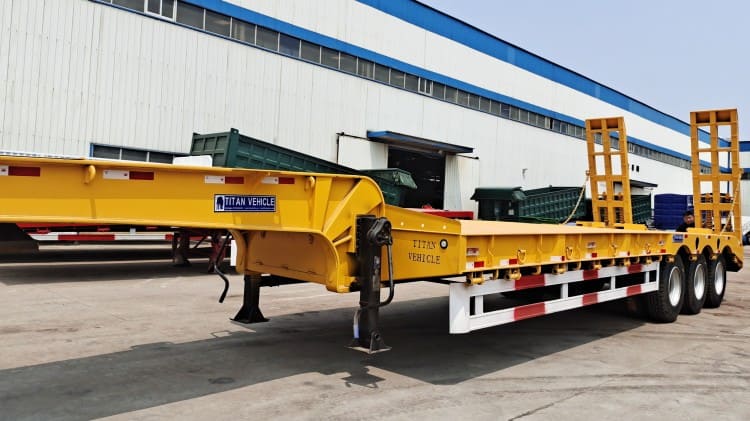

3 Axle 80 Ton Drop Deck Semi Trailer

Low Bed Trailer Truck Description:

TITAN 80 ton drop deck semi trailer are mainly used for heavy machinery transport. TITAN make very durable and strong products to meet customers shipping needs. We also use high-strength steel to guarantee capacity with loads ranging from 60 to 100 tons of payload.

We also have the 2 axles, 3 axles, 4 axles, and the color could be painted as your request. We also can customized according to your request 100%. The ramp of the 3 axle low bed trailer is made of High-strength low-alloy steel H60 steel welded to provide a strong load-bearing capacity, effectively ensuring that the weight of the excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

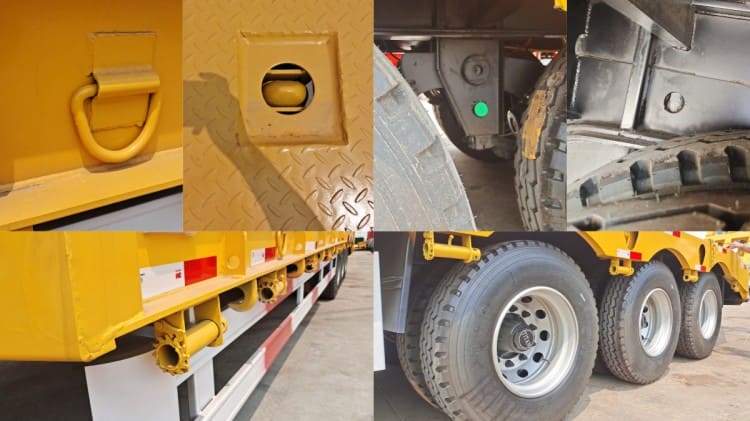

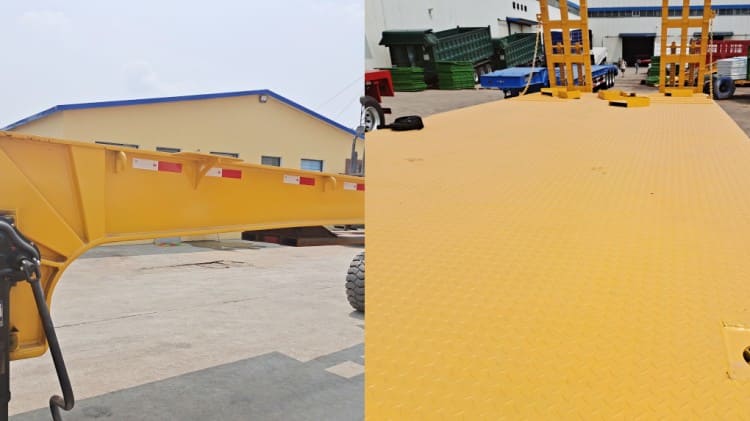

80 Ton Drop Deck Semi Trailer Details:

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

80 Ton Drop Deck Semi Trailer | 3 Axle Low Bed Trailer Truck Price

3 Axle Low Bed Trailer Specification:

Model: 3 axle 80 ton drop deck semi trailer

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 80-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Leaf Spring: 90(W)mmx13(Thickness)mmx10 layers

King pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand/TITAN brand

Main beam: Height: 500mm;  Thickness: Upper plate: 20mm, Middle plate: 12mm, Bottom plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: spring ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Tool box: 1 PCS

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Advantages of drop deck semi trailer:

1.  The main beam of low bed trailer truck is made of HG high strength steel with high bearing capacity and it adopts the submerged arc welding technology to ensure the smooth and firm weld and avoid the problem of weld opening, which it will aslo improves the carrying capacity.

2.  Main beam height is 550mm. The upper and bottom plate thickness is 22mm and the middle plate is 20mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

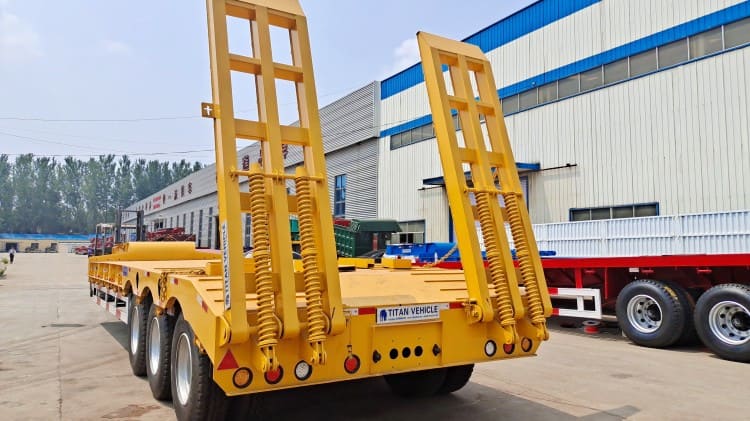

3. The drop deck semi trailer loading ramps is made by high strength steel, with high loading capacity, it will not happen to the deformation when carry heavy equipment. which the service can up to more than 5 years, other factories use channel steel welding, it is easy to deformation collapse.

4. Our low bed trailer truck use the polyurethane paint, high adhesion, high chromaticity, beautiful color, cost is twice than ordinary paint. The service life can entend 5 years.

5. All TITAN drop deck semi trailer accessories are from internationally renowned brands.
