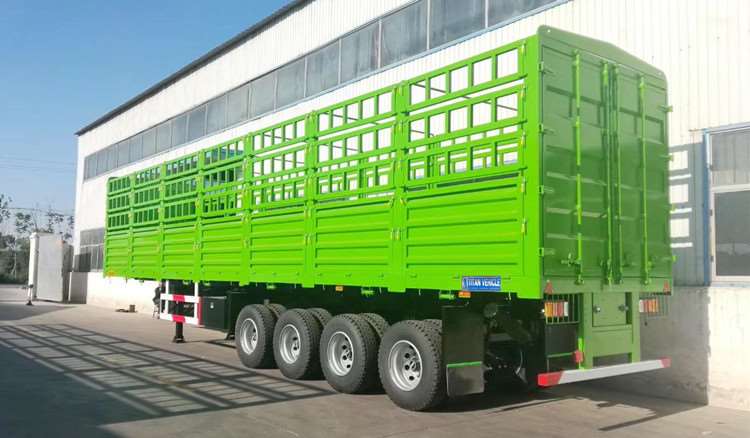

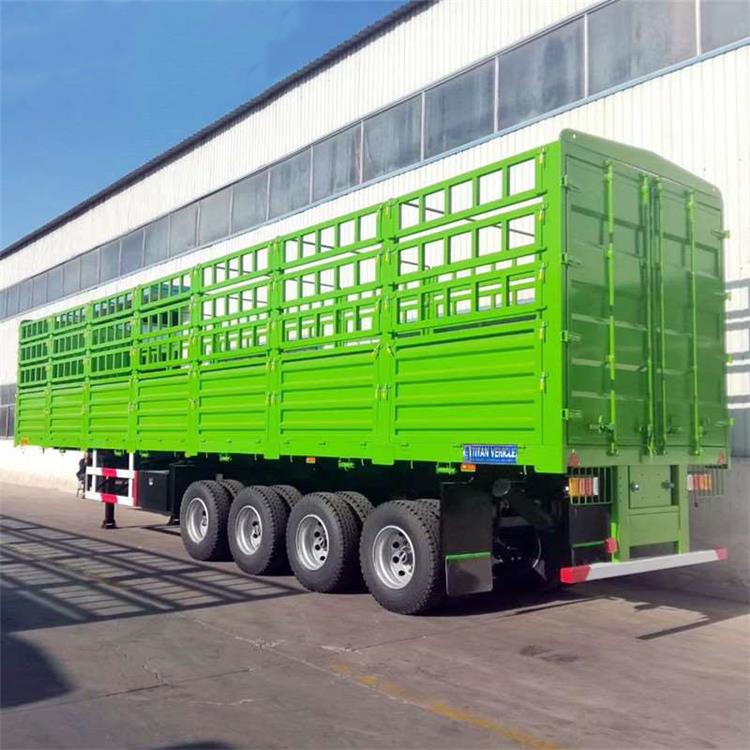

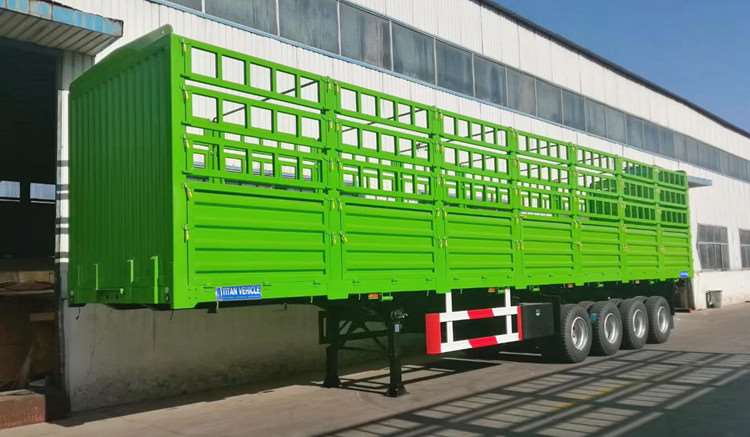

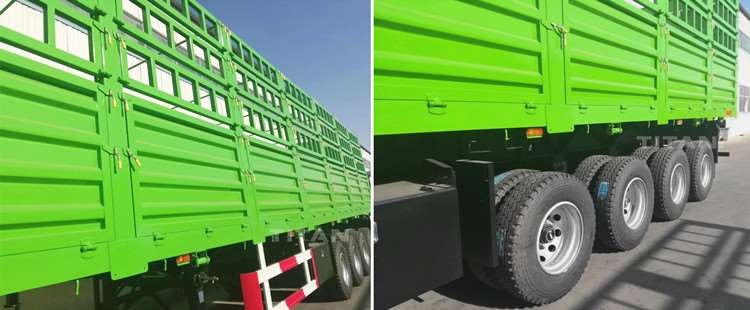

The 4 Axle Fence Trailer has a fence structure design. We have 2/3/4 bridges with a load capacity of 30/40/60/80/100 tons for your choice. Customizable side wall height. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.
TITAN 4 axle fence trailer deeply loved by foreign customers due to main material used high quality steel-Q345. It has high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.
In addition, the fence trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.
Fence trailer was popular by logistics companies as its multipurpose application.
4 Axle Fence Trailer For Sale In India
4 Axle Fence Trailer For Sale In India
4 Axle Fence Trailer For Sale In India
Dimension(mm): 13000x2500x3050mm
Tare Weight: About 7.6T
Trailer Sides: 1500mm
Loading capacity(ton): 60-80T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. In the design of the appearance of the carriage of the fence trailer for sale,, it strives for beautiful appearance, reasonable internal structure and advanced technology.
2. 4 axle fence trailer for sale adopts high-quality steel and is welded in strict accordance with the industry standard. It is convenient and practical, safe and reliable.
3. The space frame structure of 4 axle fence trailer is welded by longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no deformation.
4. The suspension system of TITAN fence trailer for sale adopts internationally renowned brands, with high strength and strong impact resistance.
Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
