60 Tons Fence Truck Trailer with Stakes

Name: 60 Tons Fence Truck Trailer with Stakes
Rating: 0.00 (0 reviews)

TITAN 60 ton fence semi trailer with stakes is mainly designed for transportation agricultural producta and the other bulk cargos. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.

SKU:

GTIN:

MPN:

Brand:

Fence Truck Trailer Description:

This 60 tons fence truck trailer adopts an advanced production concept, uses automatic submerged arc welding technology, and uses high-strength carbon steel to make the main beam of the fence truck trailer to ensure the integrity of the beam and make the beam more durable.

The main beam is made of low-carbon and high-strength alloy steel, which has higher bearing capacity, can carry more goods, and reduce your transportation costs.

60 Tons Fence Truck Trailer with Stakes for Sale Price

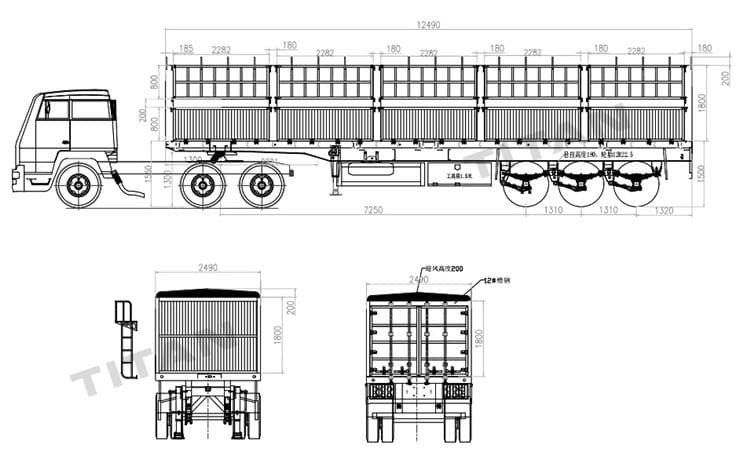

Fence Truck Trailer Specification:

Dimension(mm): 12490x2490x3500mm

Loading capacity(ton): 40-60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

60 Tons Fence Truck Trailer with Stakes for Sale Price

Advantage of fence truck trailer:

1. TITAN Vehicle uses high-strength steel to manufacture the fence truck trailer with stakes, so that the trailer has higher carrying capacity and longer service life.

2. TITAN Vehicle Use advanced welding technology to manufacture the main beam of the animal transport trailer, making the chassis of the trailer stronger and less prone to deformation.

3. TITAN adopts world-renowned brands as fence truck trailer accessories, such as jost landing gear, etc., which prolongs the life of the trailer.

4. fence truck trailer can be customized and produced according to customer needs, with good quality and low price.

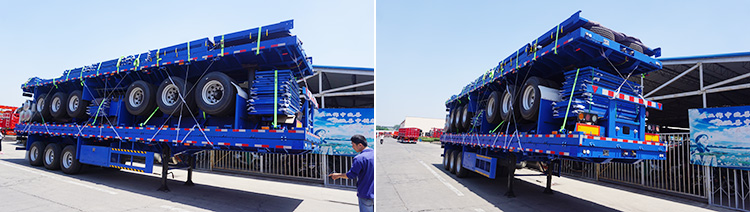

Package of the 60 Tons Fence Truck Trailer

60 Tons Fence Truck Trailer with Stakes for Sale Price

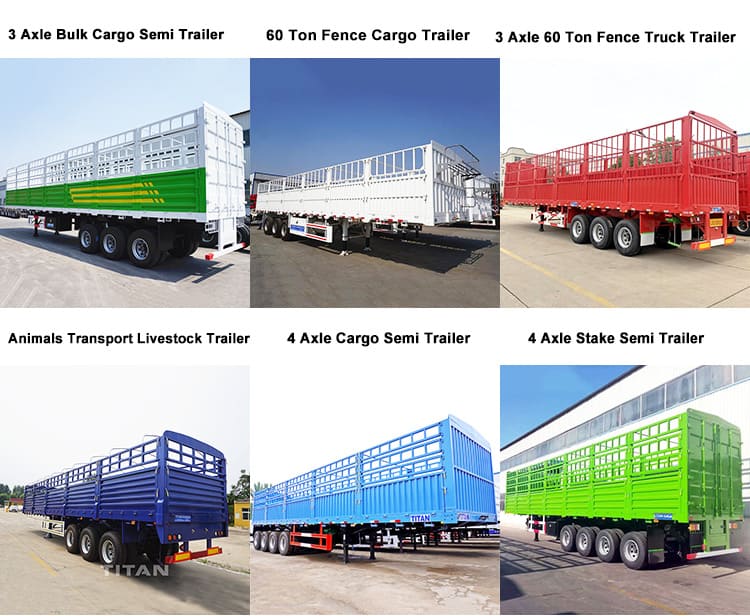

Other Fence Truck Trailer with Stakes

60 Tons Fence Truck Trailer with Stakes for Sale Price

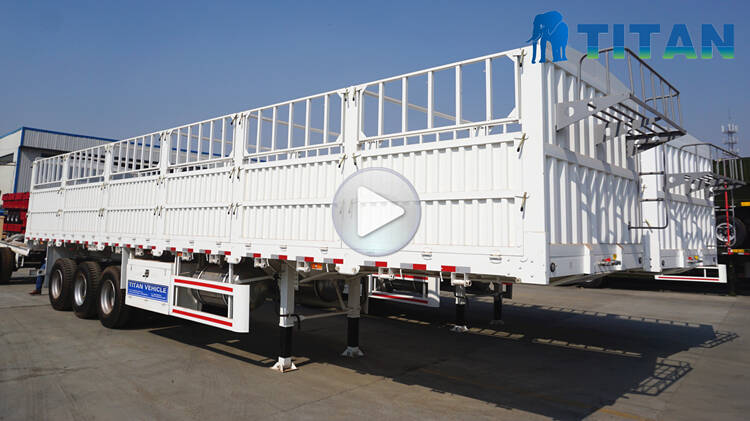

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
