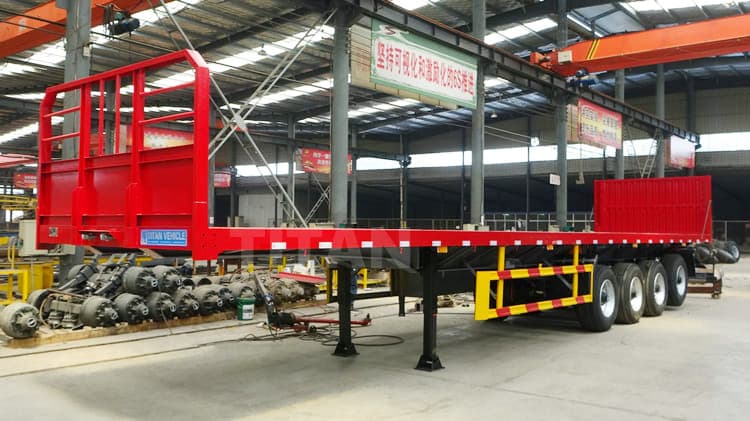

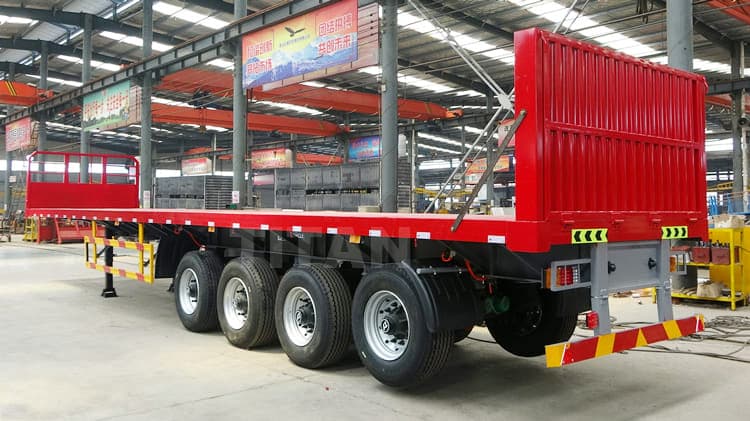

4 Axle Flatbed Trailer with Airbag Suspension

Flatbed Trailer Truck Description:

TITAN flatbed trailer truck is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. And 40ft flatbed container semi trailer can transport one 40ft container, two 20ft container or one 20ft container.

TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. To make sure the service life of the semi trailers, all the spare parts we adopt are world famous brand.

4 Axle Flatbed Trailer with Airbag Suspension Price for Sale in Ghana

4 Axle Flatbed Trailer with Airbag Suspension Price for Sale in Ghana

4 Axle Flatbed Trailer with Airbag Suspension Price for Sale in Ghana

4 Axle Flatbed Semi Trailer Specification:

Dimension(mm): 13000x2500x1530mm

Transport: 20ft, 40ft, 45ft container

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

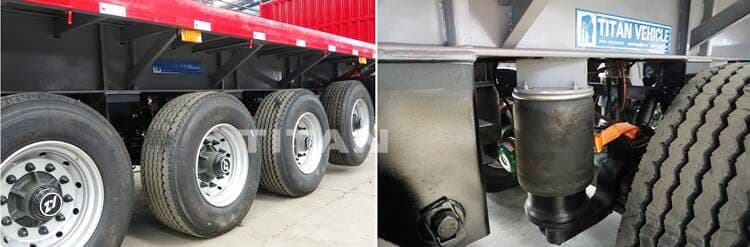

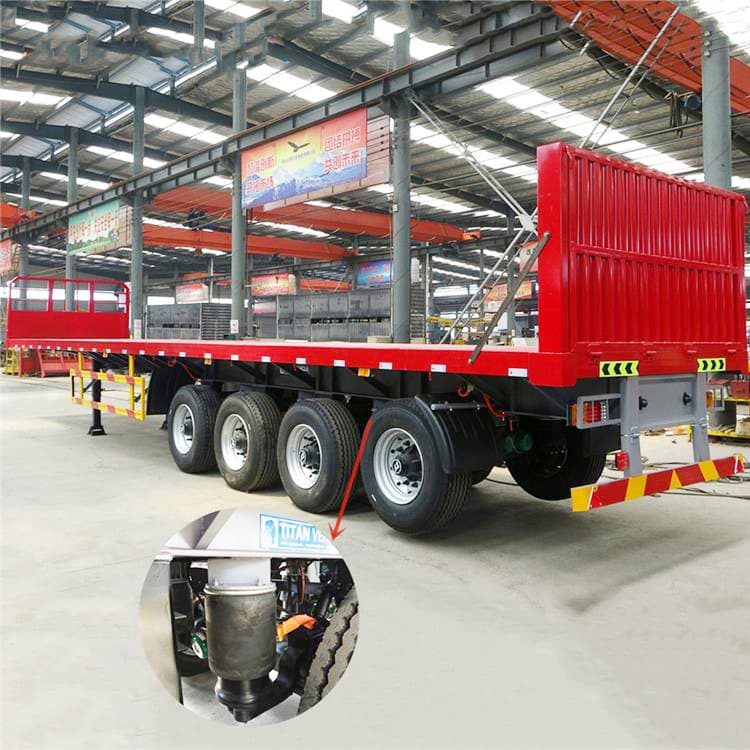

Suspension: Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Flatbed Trailer Truck Advantages:

1. The 45ft flatbed semi trailer floor is skid checkered plate, therefore it will make the other bulk cargo more stable. which make even if you carry very heavy cargo with our flatbed tractor trailer, it will never deform.

2. TITAN also uses advanced submerged arc welding technique to produce the 4 axle flatbed semi trailer, therefore there is no welding interface between middle, bottom and upper plate of main beam.

3. High quality container locks will make sure the stable and safety of the loads. When we produce the container locks, the container locks will not damage the side beam. But other supplier's container locks will damage the side beam.

4. TITAN also use the polyurethane paint to brush the 40 feet flatbed truck trailer body, so it will make sure the flatbed semi trailer for sale is more pretty, and the effective protection of the body against rust, extend the life of the flatbed tractor trailer.

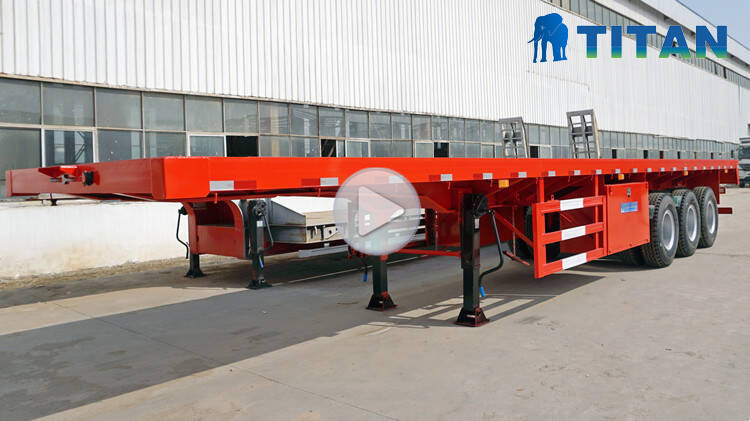

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

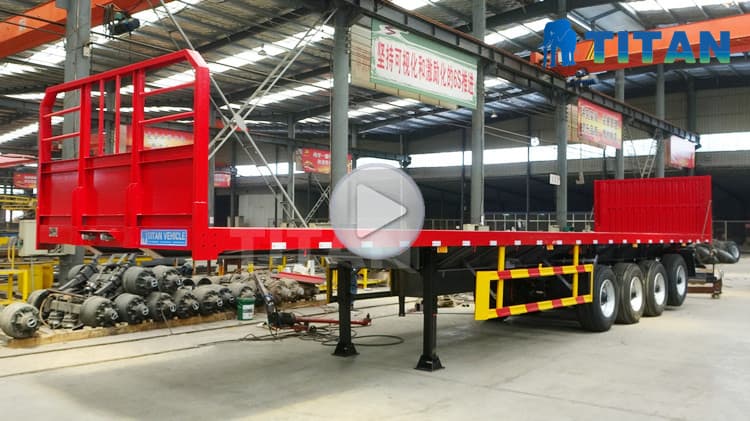

4 Axle flatbed semi trailer details display video

Please click "TITAN Flatbed Trailer" to get more videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
