40 Ft Container Flatbed Trailer

Flatbed Container Description：

Flatbed container trailer has many types according to the number of axles,  which are the 2 axle 40 foot container flatbed, 3 axle 40 ft container trailer for sale, 4 axle 40 ft container trailer for sale, and the single point suspension logistics trailer.

Flatbed container trailer is usually used to transport 20 foot or 40 foot containers. They are mainly used for container transportation, including supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana

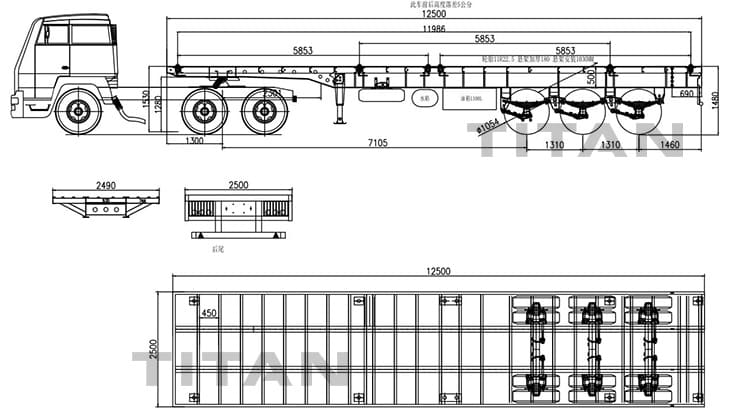

40 Ft Container Trailer Specification:

Model: tri axle flat bed trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana

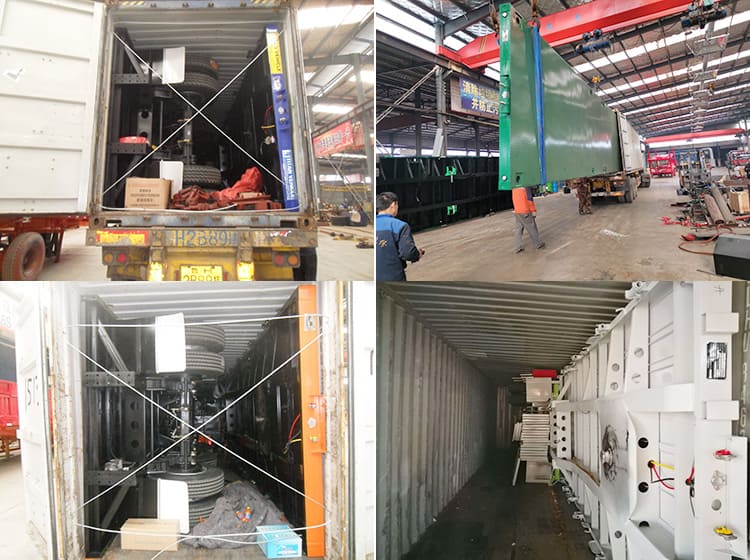

Package of Container Flatbed:

TITAN has professional packaging solutions. This flatbed container trialer can pack all the trailers through a 40-foot container, which is undoubtedly safer, avoids the flatbed container trailer being bumped and deformed during transportation, and also has the effect of waterproofing.

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana

Through this video, you can see different types of flatbed tractor trailer, As well as the process, testing, packaging and customer feedback, etc.
