40ft 3 Alxe Flatbed Trailer

Description of Flatbed Trailer for Sale

40ft trailer. Its dimension is 12500m*2500*1530mm.

It can transport 40ft or 20ft containers. It can also be used to transport many other goods which are easy to be fixed, such as bagged cargo and metal etc.

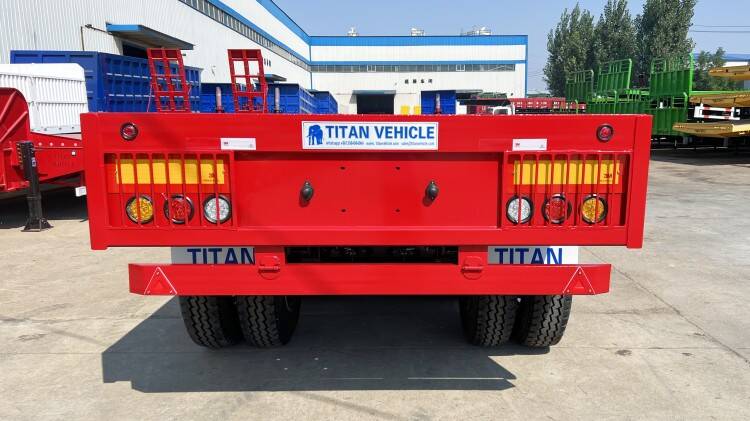

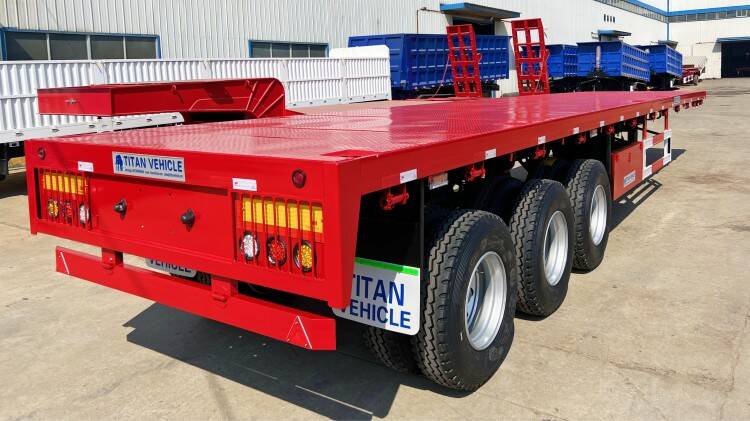

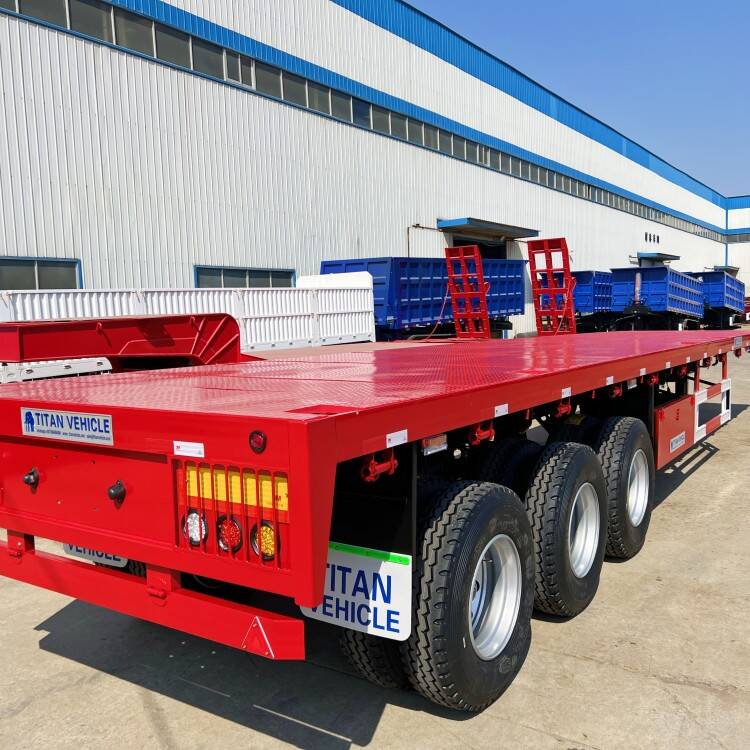

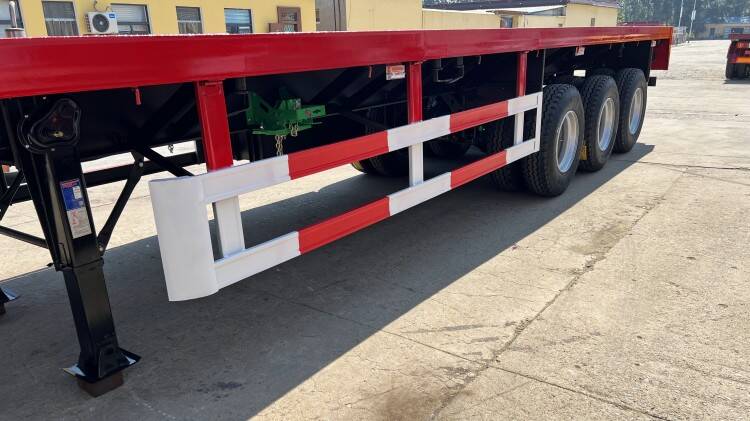

Details of 3 Alxe Trailer

Details of 3 Alxe Trailer

Details of 3 Alxe Trailer

Advantages of Flatbed Trailer for Sale

1. In terms of vehicle braking, we will equip you with 16 tons of brake pads for the 13t axle, so that it can exert a better braking effect and improve driving safety.

2. We added inclined supports with a spacing of no more than 50 cm at the main beams, which can help the main beams to load better.

3. The gooseneck part of main beam is reinforced with double plate, which makes the trailer not easy to be deformed when heavy load and better to use.

Specification of Flatbed Trailer for Sale

Model: Tri axle flatbed trailer

Dimension(mm): 12500*2500*1530mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T

Tire: 12R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension/Air suspension

Platform: 3mm-thick checkered HSS plate

Main Beam:  Q345B HSS, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Height: 500mm

Side Beam:  Q235 HSS, 16#steel channel

Twist Locks: 12 sets (lifting or screw type)

King Pin: JOST 2.0inch or 3.5inch

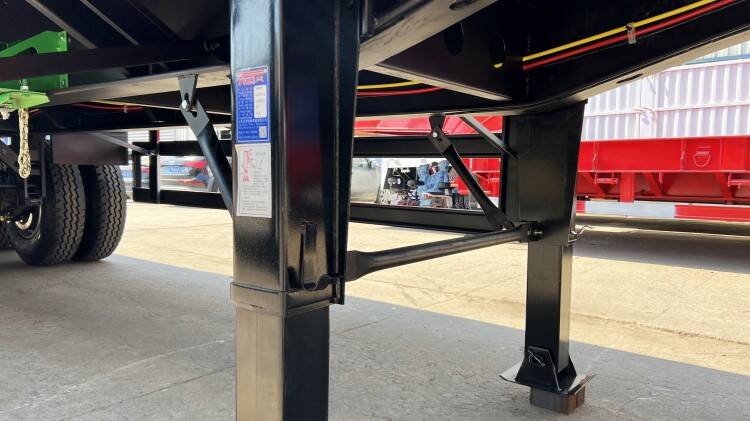

Landing Gear: Standard 28ton or JOST

Brake systerm: WABCO value

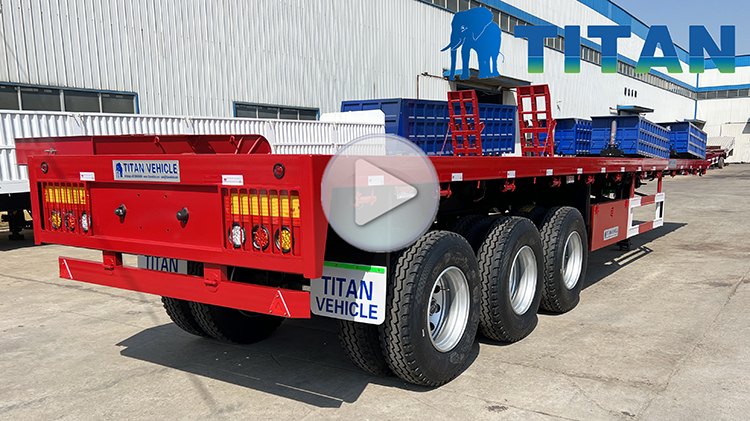

Vedio of 40 Ft Trailer

Please click "TITAN Flatbed Trailer" to get more videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
