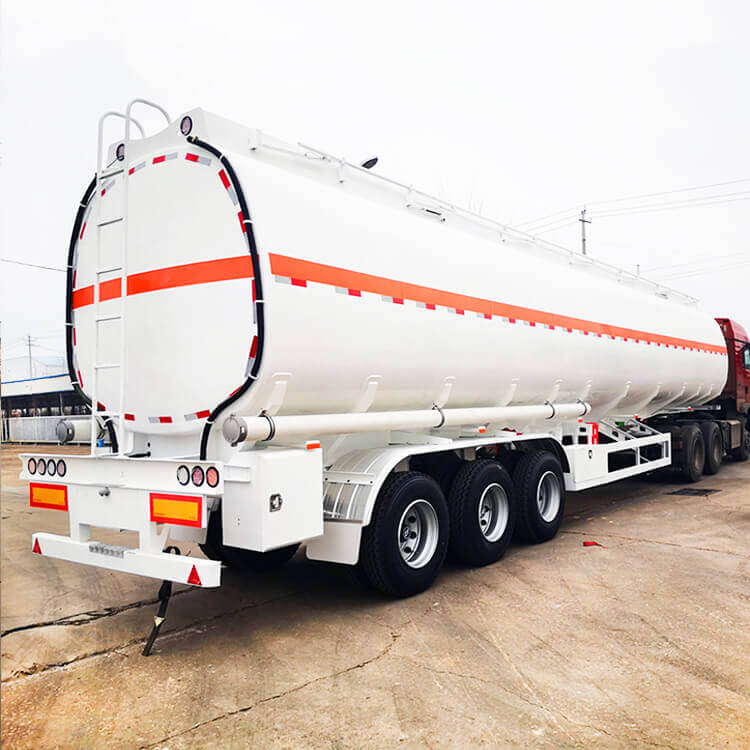

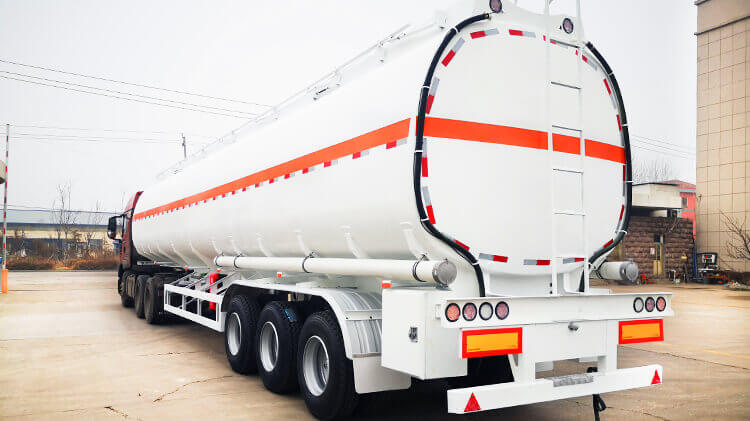

45000 Liters Petrol Tanker Trailer

Description of Petrol Tanker Trailers

This Petrol Tanker Trailer's volume is 45000 Liters.

45,000 liters Petrol Tanker Trailer is the most common model， which can effectively improve transportation efficiency. Reduce transportation costs and save fuel consumption. It is mainly composed of tank body, frame, traction device, support device, electrical system, walking system, braking systerm, protective device, accessories, etc.

Our Diesle Tanker Trailer can also produce heating and thermal insulation series tanks.

Petrol Tanker Trailers For Sale | Authorized Dealer in Africa

Petrol Tanker Trailers For Sale | Authorized Dealer in Africa

Petrol Tanker Trailers For Sale | Authorized Dealer in Africa

Advantages of Petrol Tanker Trailers

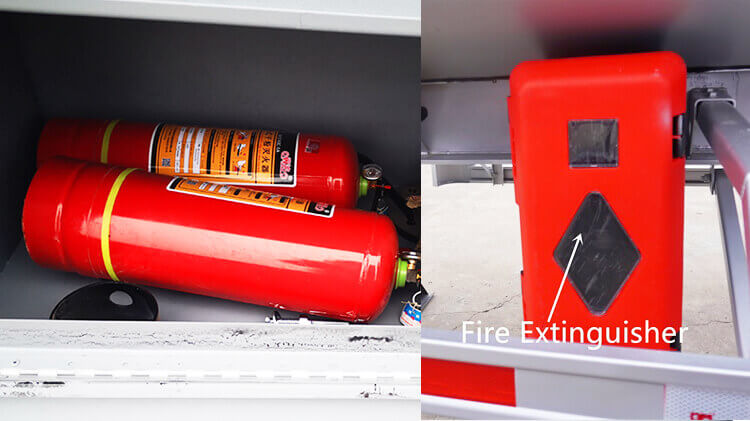

1. TITAN Petrol Tanker Trailer with safety devices: the manhole cover is an high quality explosion-proof cover. Prevents oil spillage, and the manhole valve will not leak if the tanker is accidentally overturned

2. There are multiple anti-wave board inside the Petrol Tanker Trailer which reduces the impact of the liquid on the tanker.

3. The TITAN tanker body is longitudinally welded which reduce the number of the welding seams, ensure the safety of the tanker and increase the service life.

4. Pressure test and metal detection test: To ensure the high sealed of tank body and avoid the leaks oil.

Specification of Petrol Tanker Trailers

Model: 3axel Petrol Tanker Trailers

Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)

Volume: 45m3

Tank Body Material: 5mm carbon steel

End plate: 6mm carbon steel

Manhole Cover: Carbon steel

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

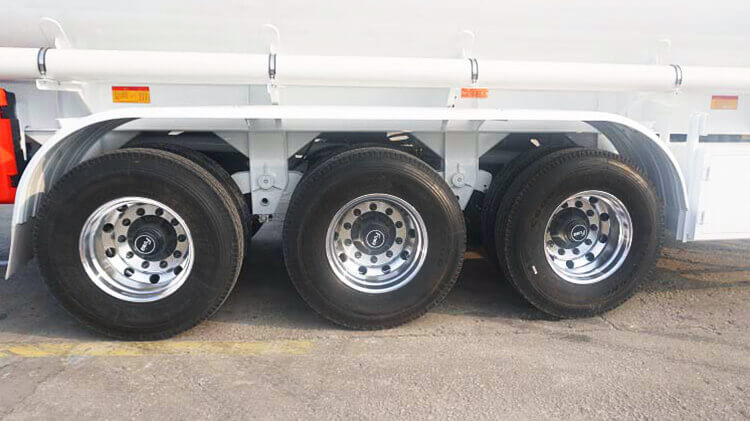

Axle: 3 axles, 13T

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: 2.0 or 3.5 inch

Suspension: Mechanical suspension

Leaf Spring: 90(w)mm*13(thickness)*10 layers

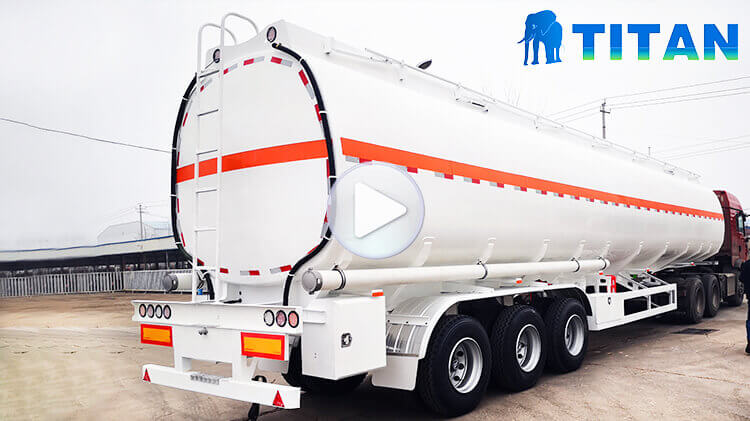

Video of Petrol Tanker Trailers

You can also click "TITAN Petrol Tanker Trailers" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
