New 2 Axle 40Ft Container Chassis Trailer

Name: New 2 Axle 40Ft Container Chassis Trailer
Rating: 0.00 (0 reviews)

TITAN new 2 axle 40ft container chassis trailer can be used to transport one 40ft container or two 20ft containers. And TITAN can also offer all kinds of diffferent 2/3/4 axle container chassis trailer model.

SKU:

GTIN:

MPN:

Brand:

Container Chassis Trailer Description:

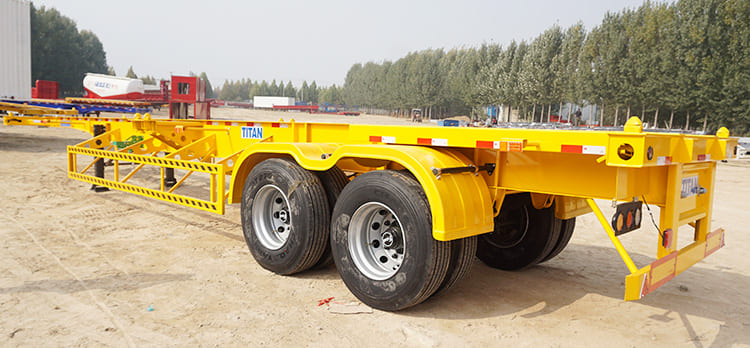

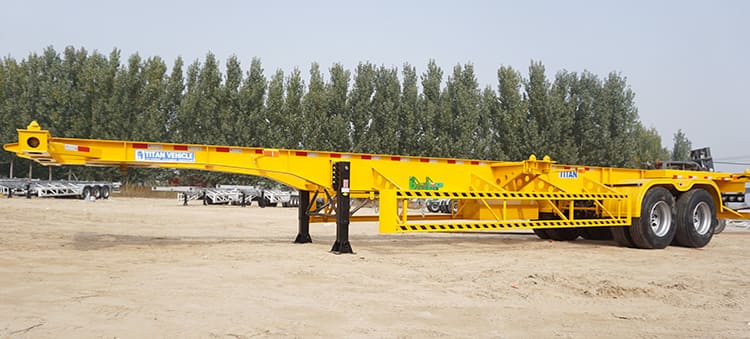

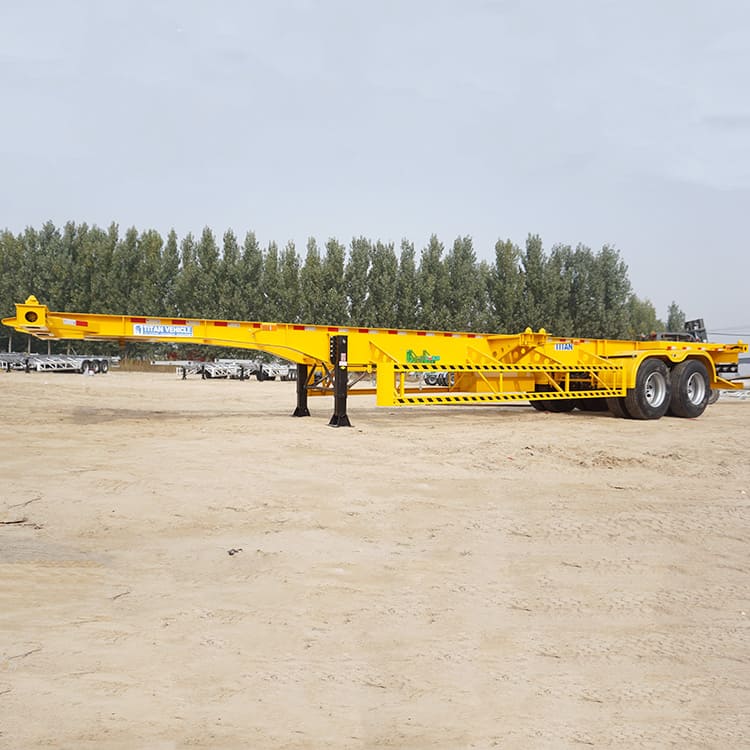

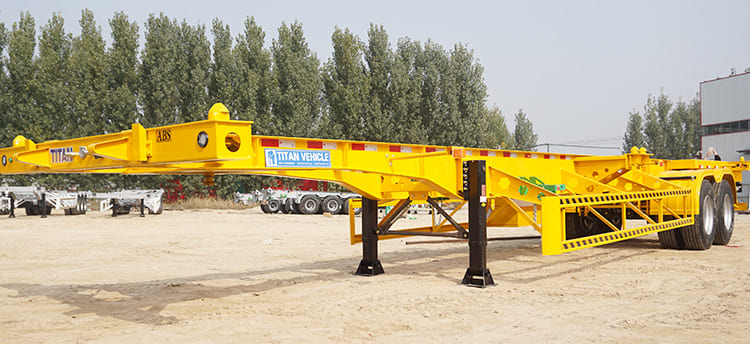

TITAN new 2 axle 40ft container chassis trailer is mainly designed for transporting one 40ft container or two 20ft containers. At the same time, TITAN Vehicle is using high strengh steel Q345 to make the main beam, which can ensure the whole container chassis is stable and durable.

This 40ft container trailer is also eqquiped with ABS Systerm, improve the safety factor of vehicle emergency braking when driving.

New 2 Axle 40Ft Container Chassis Trailer for Sale in Malawi

Container Chassis Trailer Specification:

Model: 20ft 3 axles skeleton semi trailer

Transport: 20ft, 40ft container

Loading capacity(ton): ≤80T

Overall dimension: 12400mm * 2500mm *1530mm

Axles: 2 axles , 13t/16 tons, 16 ton breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA brand

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1 PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

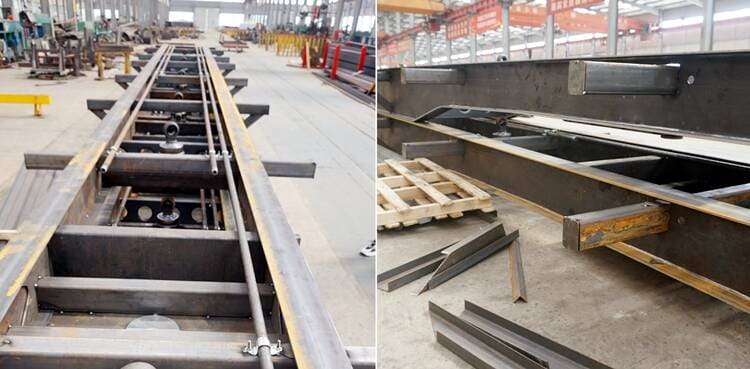

Container Chassis in the Factory

1. TITAN container chassis is made of low-carbon and high-strength alloy steel Q345, which has a higher bearing capacity and a service life of more than 10 years

2. Beam welding of this model: The beam is welded by automatic submerged arc welding process. There is no interface between the upper, middle and lower plates of the beam, which ensures the integrity of the beam and makes the beam more durable.

New 2 Axle 40Ft Container Chassis Trailer for Sale in Malawi

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
