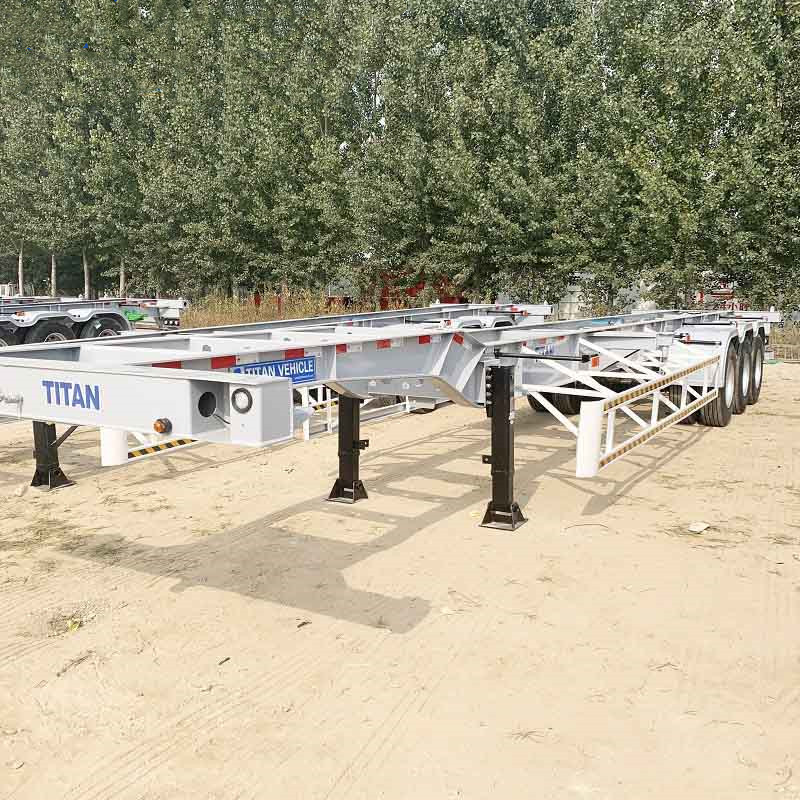

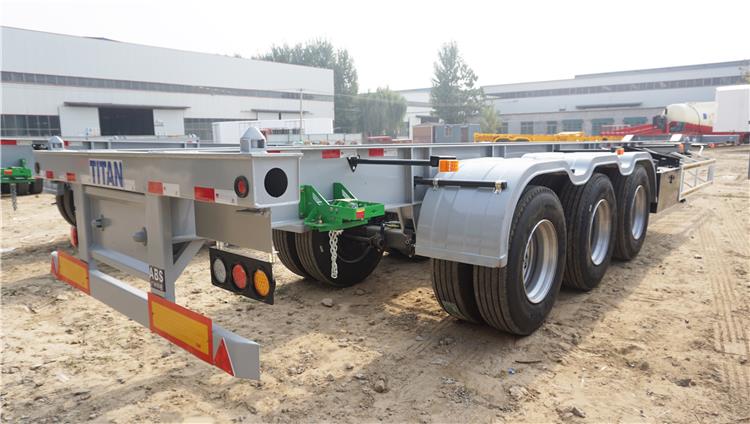

Tri Axle 40ft Gooseneck Skeletal Trailer

Name: Tri Axle 40ft Gooseneck Skeletal Trailer
Rating: 0.00 (0 reviews)

Gooseneck Skeletal Trailer, also named skeleton semi trailers, gooseneck container chassis trailers etc. Generally used for transport ISO container in port, ship yard, routes, bridges, tunnels, transfer station,

SKU:

GTIN:

MPN:

Brand:

Gooseneck Skeletal Trailer Description：

3 axle skeletal semi trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength .

40ft skeleton semi trailer fast loading and unloading, and can be directly and easily from one vehicle to another vehicle facelift.

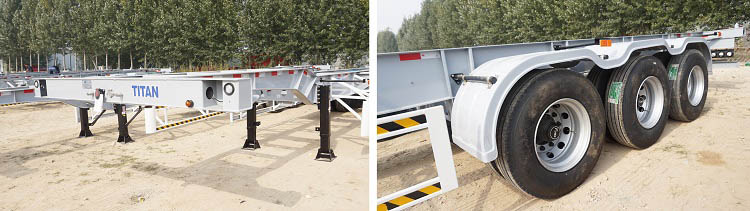

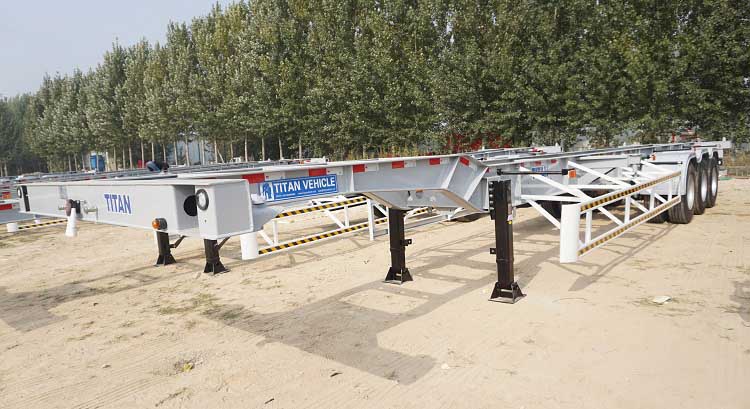

Tri Axle 40ft Gooseneck Skeletal Trailer for Sale

Container Chassis Trailer Specification:

Model: 40ft 3 axles skeletal trailer

Transport: 20ft, 40ft container

Loading capacity(ton): ≤80T

Overall dimension: 12400mm * 2500mm *1530mm

Axles: 3 axles , 13t/16 tons, 16 ton breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA brand

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1 PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Gooseneck Skeletal Trailer Advantages:

1. The main beam and the longitudinal beam of the gooseneck skeletal trailer are welded by high-strength plates, which have the characteristics of high strength, rigidity, good toughness, strong bearing capacity, no deformation, and long service life.

2. All accessories of this 40ft skeleton semi trailer are from international famous brands, which greatly improves the transportation and loading capacity of the whole skeletal trailer, improves the service life, and allows customers to buy the best quality at the lowest price.

3. TITAN also adopts advanced submerged arc welding technique to produce the 3 axles skeletal trailer, One-time main beam forming, there is no welding interface between middle, bottom and upper plate of main beam.

4. TITAN use 6 carlings to produce the frame of the container chassis trailer, which not only makes the trailer's frame stronger, but also makes the platform never sag.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
