New 3 Axle 40 Foot Flat bed Trailer

40 Foot Flat Bed Trailer Description:

Flat bed trailers for sale near me has many model Specifications according to the number of axles, such as 2 axle 40 foot flat bed trailers for sale, 3 axle 40 foot flat bed trailer, 4 axle 40 foot flatbed tractor trailer, and the single point suspension logistics trailer, ect.

TITAN has engaged in producing and exporting flat bed trailer for sale near me since 2004. Therefore, TITAN has more than 18 years of experience in producing flatbed trailer manufacturers. Till this moment we have exported more than 27000 flat bed trailers for sale to all of the world. 40 foot flat bed trailer is one of our most advantageous products, we have exported hundreds of it to the world.

New 40 Foot Flat bed Trailers for Sale Near Me Manufacturers

New 40 Foot Flat bed Trailers for Sale Near Me Manufacturers

New 40 Foot Flat bed Trailers for Sale Near Me Manufacturers

New 40 Foot Flat bed Trailers for Sale Near Me Manufacturers

New 40 Foot Flat bed Trailers for Sale Near Me Manufacturers

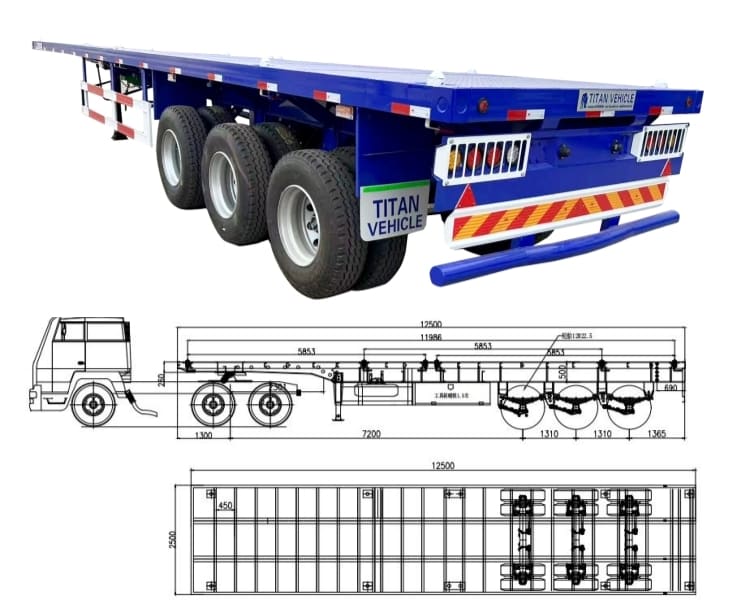

Flat Bed Trailers for Sale Specification:

Model: tri axle flat bed trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

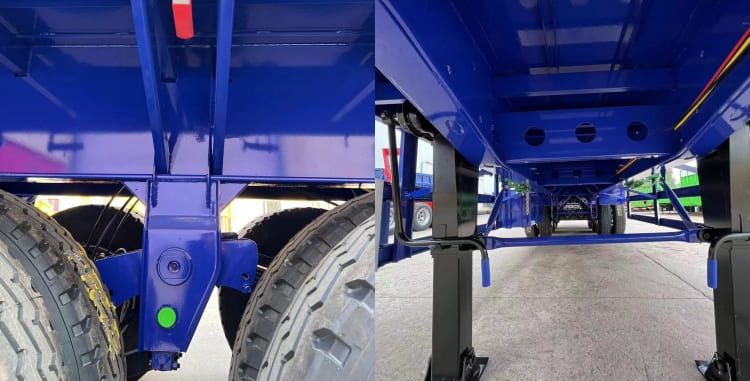

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk charge more stable.

3. Durable mechanical widened spring suspension, make sure the stability and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
