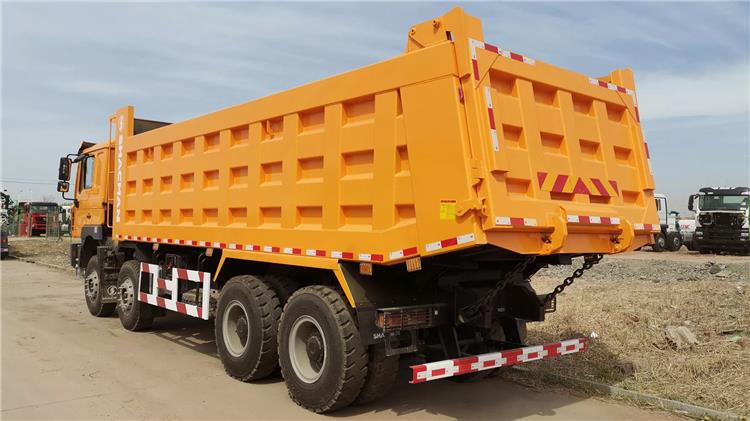

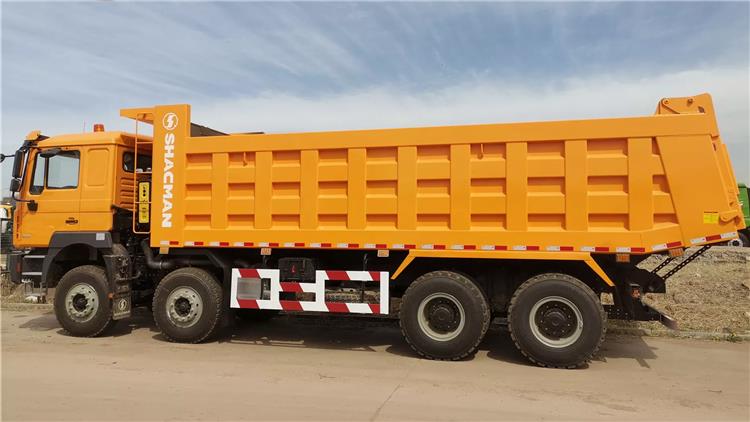

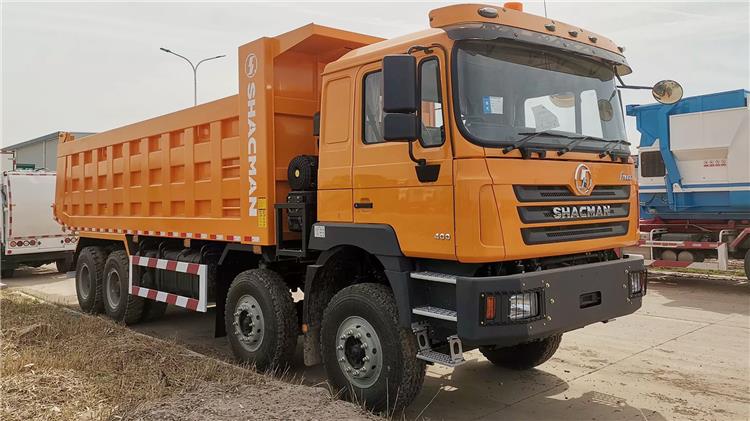

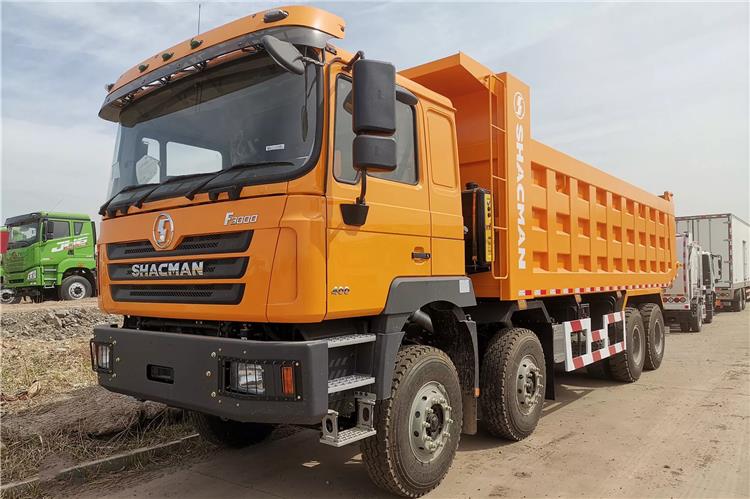

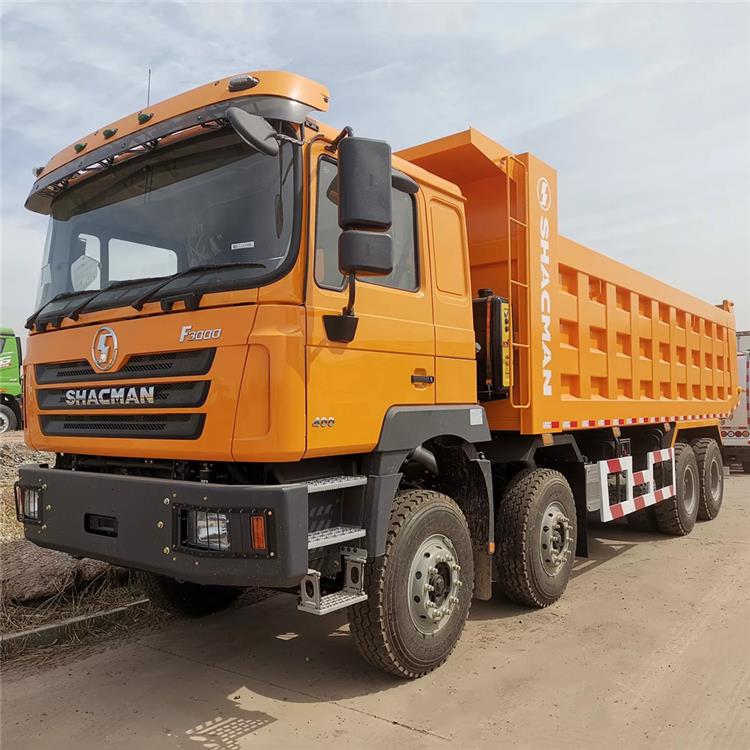

Shacman 8x4 12 Wheeler Dump Truck

Shacman 8x4 12 Wheeler Dump Truck Description:

The Shacman 12 wheeler dump truck has good damping performance, and the smoothness index is the same as that of the Mercedes-Benz Actros. The noise in the cab is low, and the combined use of multi-layer "suction and isolation" integrated noise reduction and damping noise reduction technology creates a quiet environment in the cab.

Shacman 12 wheeler dump truck is equipped with retarder, disc brake, EBS braking technology, engine braking technology, rearview mirror extended field of view and many other safety technologies to protect the safety of drivers and passengers. The cab of the shacman 12 wheeler dump truck adopts a frame-driven structure design, and the anti-extrusion capacity is increased by 22.9%.

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

Shacman 8x4 12 Wheeler Dump Truck Price | F3000 Shacman

F3000 Shacman Specification:

Brand: Shacman 8x4 12 Wheeler Dump Truck Price

Truck Model: SX3257DR324

Drive model: Left or right driven hand, 8X4

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 7.5 tons

Rear axle: Styre13 tons with hub reduction ratio 1:4.8

Chassis: Various widths, front 940mm and rear 780mm

Rear suspension: inverted leaf spring with stabilizer

Instrument panel: Combined instrument panel

Tyre: 12.00-20/12.00R20/12.00R22.5,11ps

Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab

Other: enlargement radiator, ABS

Engine:

Engine model: Weichai WP10.336

Power(Kw/Hp): 247/336

Speed(r/min):2200

Idle speed(r/min):600-800

Max torque(N.m):1250

Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard

Stroke(mm):125/147

Displacement(L):9.726

Min.fuel consumption(g/Kw.h):≦198

Engine oil filling volume:39L

Thermostat Opened at 82℃

Oil pump: Bosch

Steering

Model: 8098 integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Electrics

Starter: 5.58kw,24V

Alternator: 1.54kw(28V,55A)

Battery: 135AH

Dimension (mm)

Wheel base:3200+1350

Front-wheel track:1525

Rear wheel track:2036

Front overhang: 1850

Rear overhang: 1450

Approach angle: 28°

Departure angle: 30°

Overall length: 7550

Overall width:2490

Overall height: 3450

Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)

Fuel tank(L): 300L

Weight(Kg)

GVW:25000

Front axle loading capacity:7500

Rear axle loading weight: 13000X2

Performance:

Max. running speed(km/h):90

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
