Tri Axle Flatbed Trailer

Tri Axle Flatbed Description:

The TITAN tri axle flatbed trailer uses high-strength carbon steel to make the bottom frame, which ensures that the flatbed trailer has better bearing capacity and is durable. This 3 axle flatbed traielr can be used to transport two 20-foot containers or one 40-foot container.

At the same time, titan uses polyurethane paint to treat the appearance of the tri axle flatbed trailer, and this paint will not fall off after 5 years of use.

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

Details of tri axle flatbed trailer for sale:

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

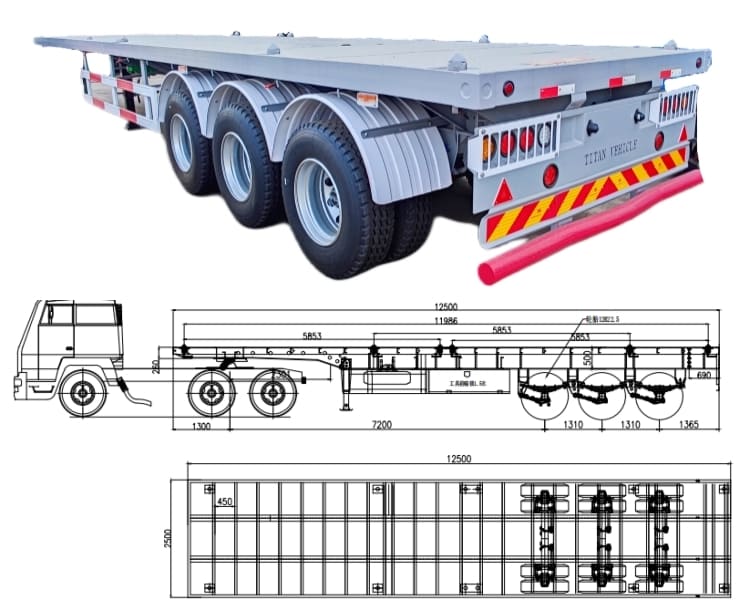

Tri Axle Flatbed Trailer Specification:

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

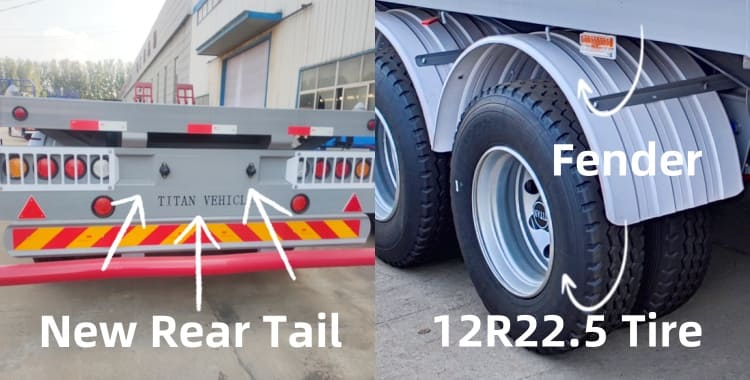

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

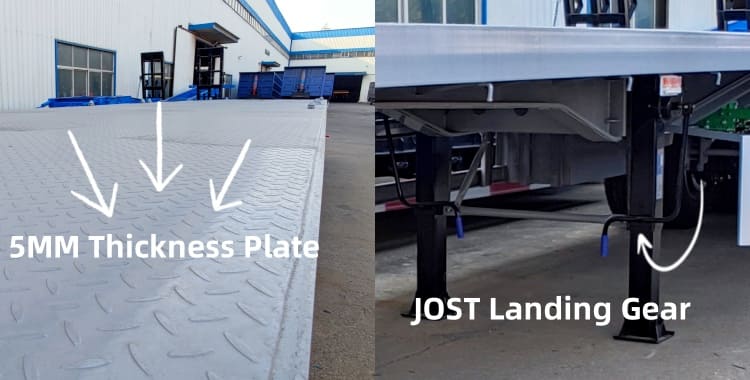

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Video Play of tri axle flatbed trialer for sale:

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
