Tri axle Trailer with Board

Triaxle Trailer with Boards Description:

Grain transport trailer is a trailer pulled by a tractor and used to haul bulk commodity products, such as grain. These trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

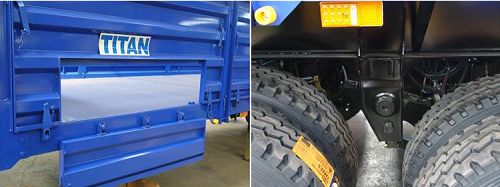

The small door of the sidewall semi trailer facilitates the loading and unloading of grain. 3 axles semi trailer with side boards is the most advantages products in TITAN.

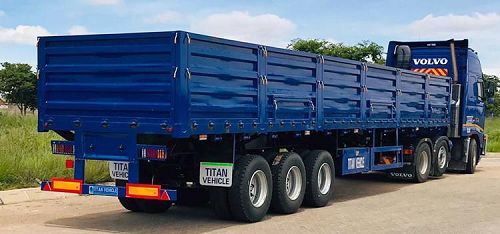

Triaxle Trailer with Boards for Cargo Transport Price in Zimbabwe

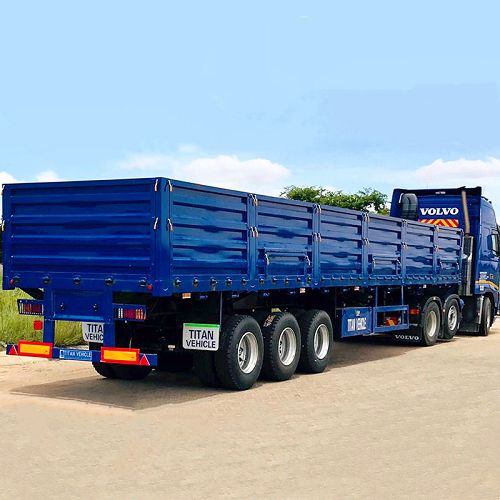

Triaxle Trailer with Boards for Cargo Transport Price in Zimbabwe

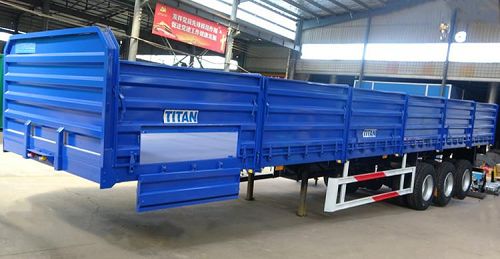

Triaxle Trailer with Boards for Cargo Transport Price in Zimbabwe

Cargo Transport Trailer Specification:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Side Wall Semi Trailer Advantages:

1. TITAN adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam of triaxle trailer with boards, so the main beam is more stronger and more durable.

3. Hight quality side wall semi trailer, make sure the stable and safety of the loads.

4. Also the cargo transport trailer floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.

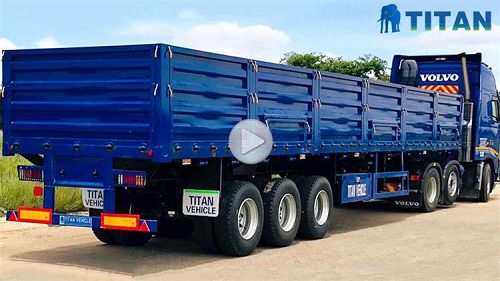

Video of triaxle Grain trailer :

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
