Tri Axle 60 Ton Open Top Trailer

Name: Tri Axle 60 Ton Open Top Trailer
Rating: 0.00 (0 reviews)

This open top trailer have 3 axles, and it can carry 60 tons cargo. Customizable side wall height. And TITAN can also offer all kinds of different open top trailer with 2/3/4 axles to meet your transport need. 60 Ton open top trailer is one of the most advantages products in TITAN.

SKU:

GTIN:

MPN:

Brand:

Open Top Trailer Description：

Open top semi trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

Dropside trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design. The side wall flatbed trailer can be use to load the containers after adopt the contianer locks for it.

Tri Axle 60 Ton Open Top Trailer for Sale in Nigeria

Open Top Trailer Specification:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Open Top Trailer Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the open top trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the open top trailer for sale, all the spare parts we adopt are world famous brand.

3. Open top trailer for sale floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight quality side wall, make sure the stable and safety of the loads.

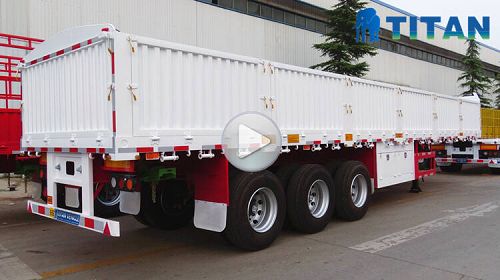

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
