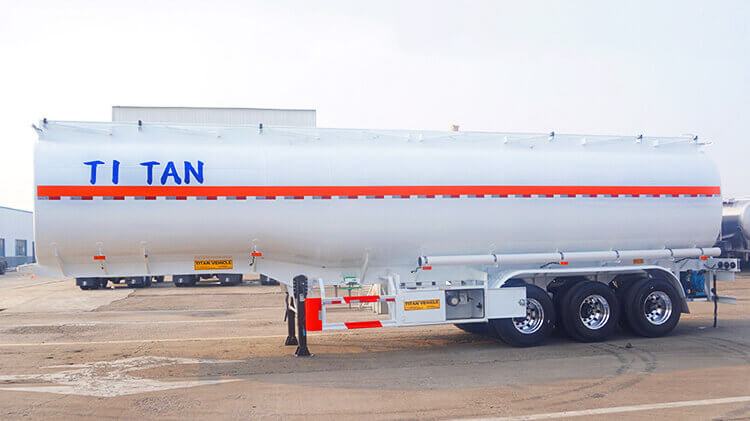

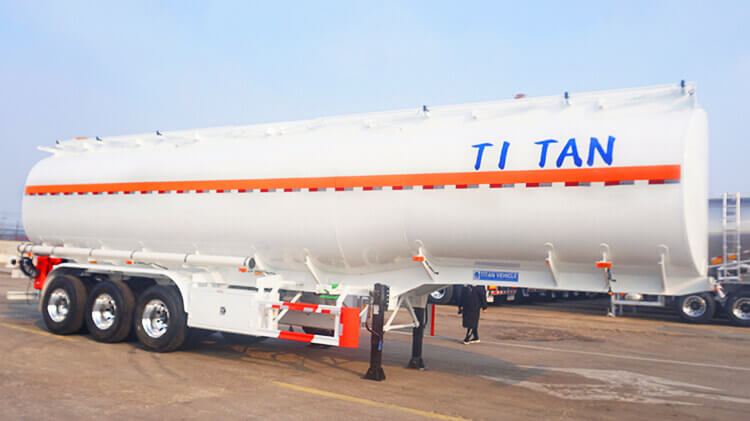

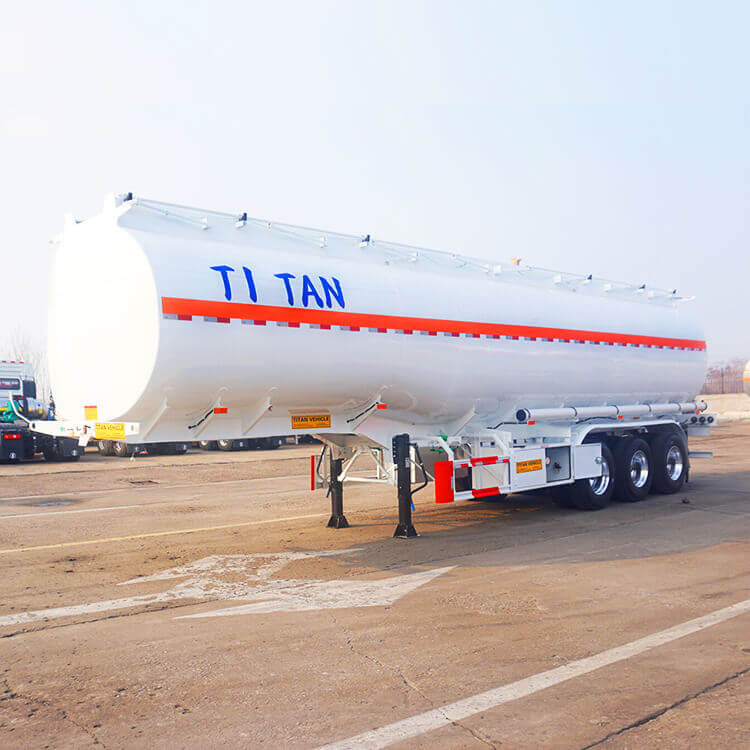

3 Axle 42000L Gasoline Tanker Trailers

Description of Gasoline Tanker Trailers

This model is 3 axle 42000l Gasoline Tanker Trailers.

It is mainly used for transporting many different kinds of liquids, such asdiesel, gasoline, edible oil and chemical liquids, etc.

The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.

3 Axle 42000 L Gasoline Tanker Trailers for Sale Price

3 Axle 42000 L Gasoline Tanker Trailers for Sale Price

3 Axle 42000 L Gasoline Tanker Trailers for Sale Price

Advantages of Gasoline Tanker Trailers

1. TITAN Use Q235 low carbon alloy steel with a thickness of 5mm to make the gasoline tanker trailer and its tank body is very strong.

2. As for the discharging valve, you can choose to put it on the left or right side. It can also be divided into compartment, such as three compartments, four compartments and so on. And we will equip you with Bottom valves in each compartment.

3. After the end of production, we will carry out pressure test and metal inspection test to ensure good airtightness of the tank.

Specification of Gasoline Tanker Trailers

Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)

Volume: 42m3

Tank Body Material: 5mm carbon steel

End plate: 6mm carbon steel

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Color: Optional

Axle: 3 axles, 13T

Kingpin: 2.0 or 3.5 inch

Suspension: Mechanical suspension

Leaf Spring: 90(w)mm*13(thickness)*10 layers

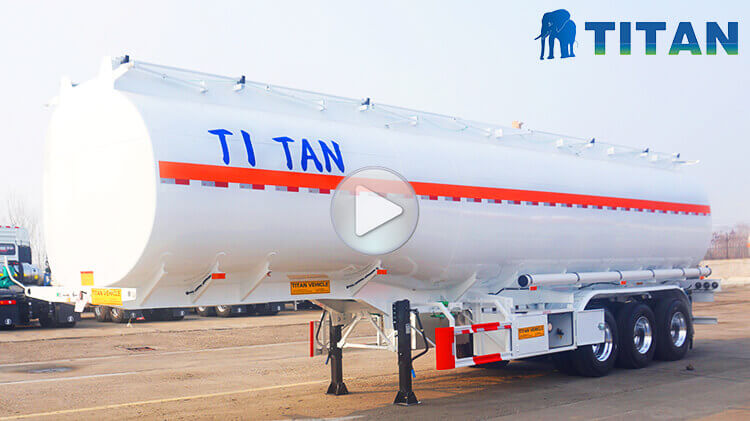

Video of Gasoline Tanker Trailers
