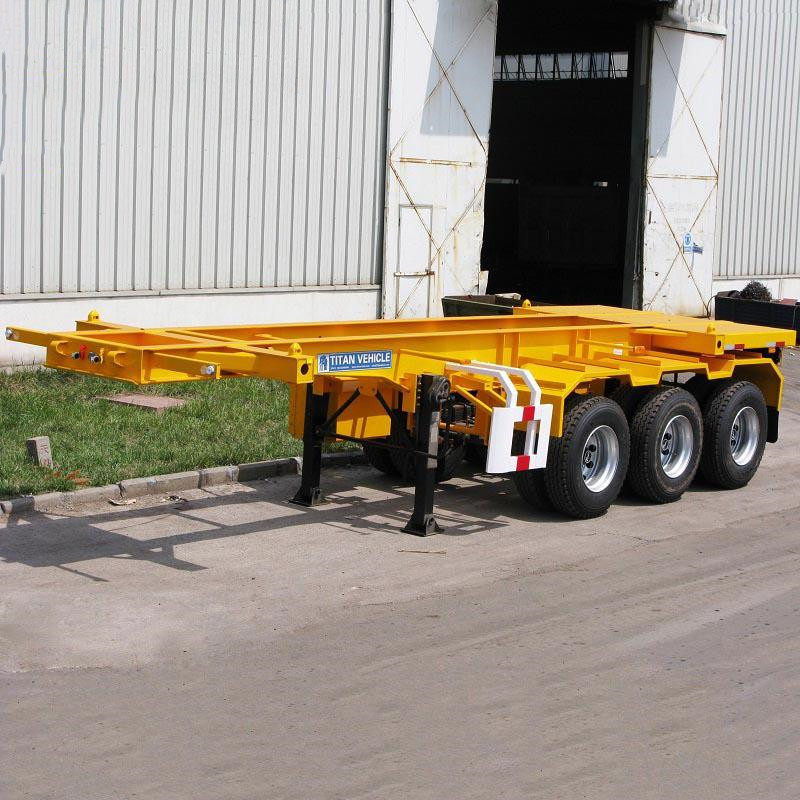

Tri Axle 20ft Skeleton Container Semi Trailer

Name: Tri Axle 20ft Skeleton Container Semi Trailer
Rating: 0.00 (0 reviews)

20ft Container Semi Trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

SKU:

GTIN:

MPN:

Brand:

20ft Container Semi Trailer Description:

20ft Container Semi Trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport. TITAN container skeletal trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

Use a container semi trailer to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

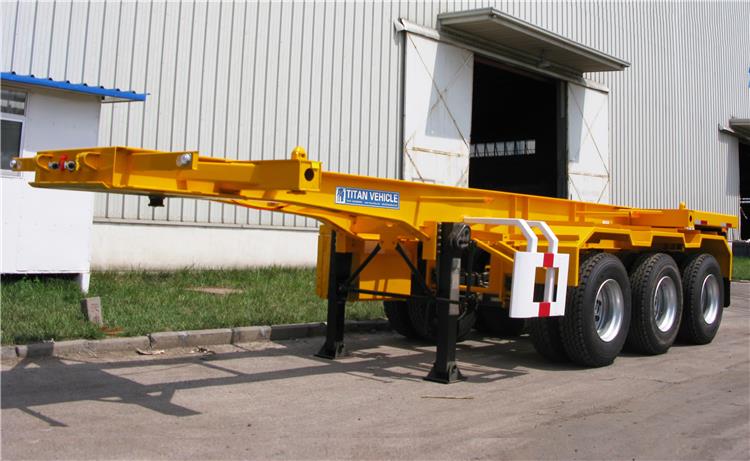

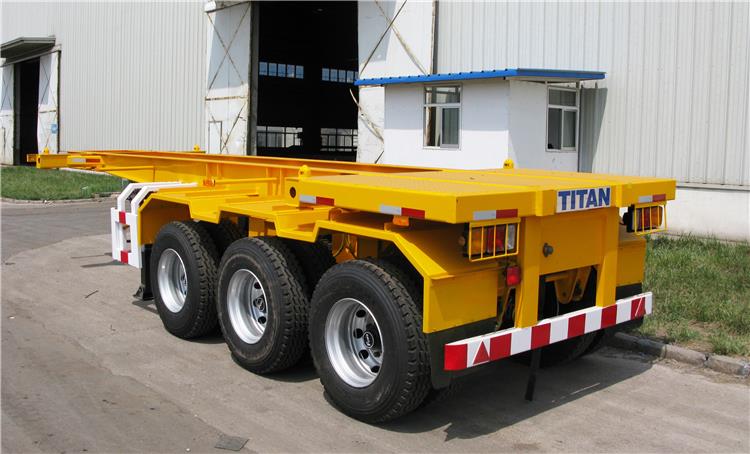

Tri Axle 20ft Skeleton Container Semi Trailer for Sale

Tri Axle Skeletal Trailer Specification:

Model: 3 axles 20 feet skeleton trailer

Transport: 20ft, 40ft container

Loading capacity(ton): ≤80T

Overall dimension: 12400mm * 2500mm *1530mm

Axles: 3 axles , 13t/16 tons, 16 ton breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA brand

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1 PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Skeletal Semi Trailer Advantages:

1. The main beam of Titan 20ft container semi trailer is made of Q345 high strength steel, who has more loading capacity. The middle plate is 500 mm high,8 mm thick; upper plate is 14 mm thick, bottom is 16 mm thick.

2. Titan also adopts advanced submerged arc welding technique to produce the 20 feet skeleton trailer, One-time main beam forming, there is no welding interface between middle, bottom and upper plate of main beam.

3. Tri axle skeletal trailer use polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

4. We have professional team to package the tri axle skeletal semi trailer to save shipping cost for our customer. Up to 3 20ft skeleton container semi trailer can be packed together.In this way, we can minimize the volume of the trailer, thus saving ocean freight. If you buy two trailers together, we can put them in one container, the container protects the trailer inside from rain and seawater. To prevent rust, Titan will spray wax on the trailer before shipping, even if it rains during transportation, our trailer will not rust.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
