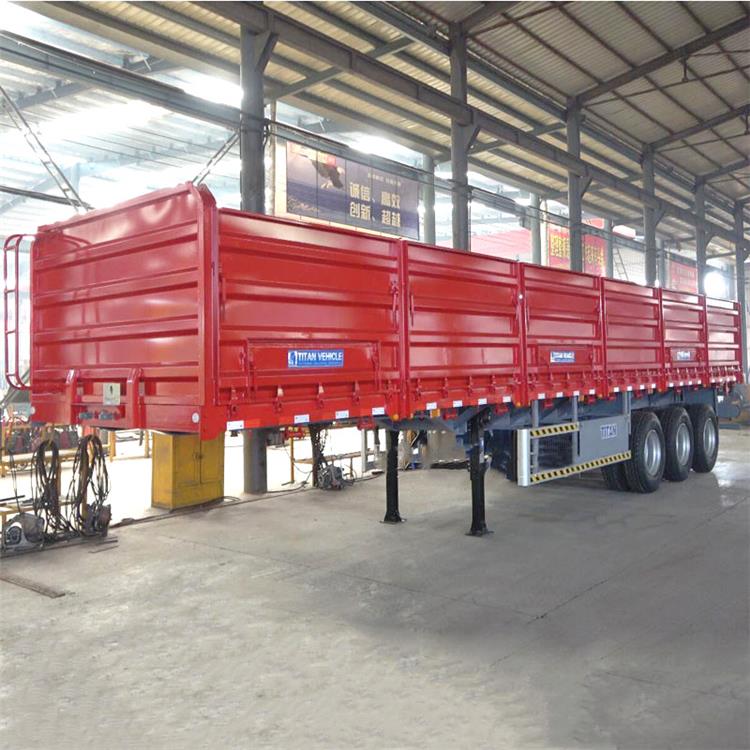

40 ft Sidewall Grain Transport Trailer

Name: 40 ft Sidewall Grain Transport Trailer
Rating: 0.00 (0 reviews)

A grain transport semi trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. And TITAN can also provides all kinds of different semi trailer with side wall to meet your transport need.

SKU:

GTIN:

MPN:

Brand:

Sidewall Semi Trailer Description:

Grain transport semi trailer was popular by logistics companies as its multipurpose application. It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

The side wall flatbed trailer can be use to load the containers after adopt the contianer locks for it.

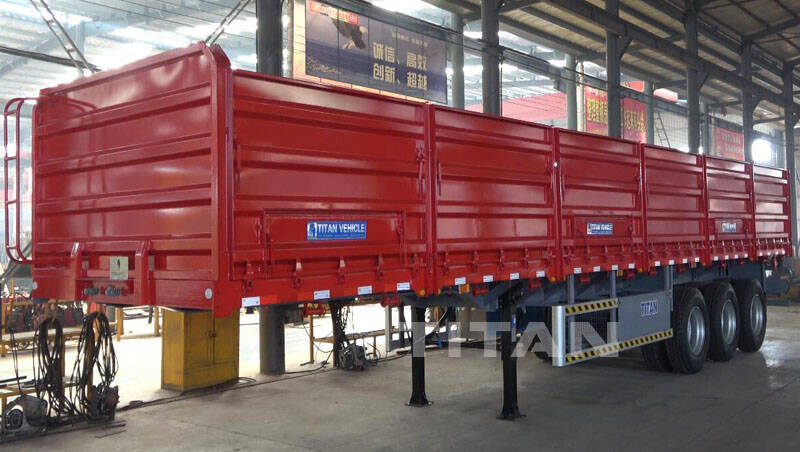

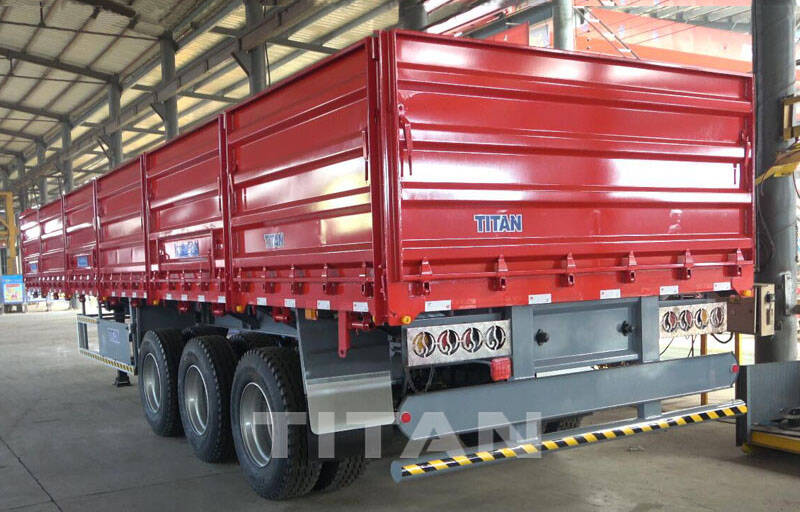

Grain Transport Semi Trailer with Side Wall for Sale in Zimbabwe

Grain Transport Trailer Specification:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Grain Trailer for Sale Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall trailer for Sale, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam of grain transport trailer, so the main beam is more stronger and more durable.

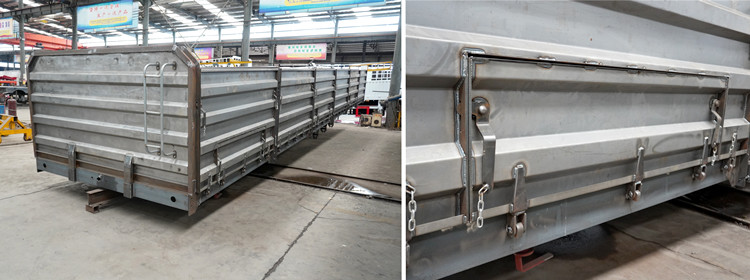

3. Hight quality side wall of grain transport trailer, make sure the stable and safety of the loads.

4. Also the semi trailer with side wall floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailer for sale, all the spare parts we adopt are world famous brand.

3 axles grain semi trailer detail display video

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
